SCHNEIDER驅動器ATV212HU40N4技術參數
Specifications | |
Main | |
Device short name | ATV212 |
Product destination | Asynchronous motors |
Network number of phases | 3 phases |
Motor power kW | 4 kW |
Motor power hp | 5 hp |
Supply voltage limits | 323…528 V |
Supply frequency | 50...60 Hz - 5...5 % |
Line current | 6.4 A at 480 V |
Range of product | Altivar 212 |
Product or component type | Variable speed drive |
Product specific application | Pumps and fans in HVAC |
Communication port protocol | METASYS N2 |
[Us] rated supply voltage | 380...480 V - 15...10 % |
EMC filter | Class C2 EMC filter integrated |
IP degree of protection | IP21 |
SCHNEIDER驅動器ATV212HU40N4產品介紹

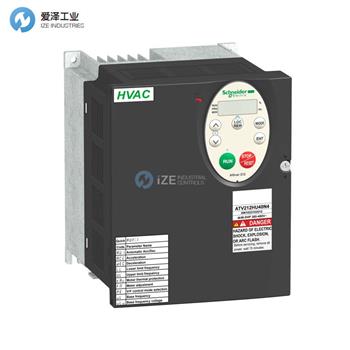

這款 Altivar 212 變頻器可以為三相異步電機供電。其防護等級為 IP21，并內置 EMC 濾波器。其額定功率高達 4kW / 5hp，額定電壓為 380V 至 480V AC。其設計基于生態能源，與傳統控制系統相比，能耗可降低高達 70%。得益于其電纜溫升降低技術，Altivar 212 變頻器可提供即時、無干擾的運行，無需使用線路電感器或直流電感器等附加選項來處理電流諧波。其重量為 3.35 千克，尺寸為寬 142 毫米、高 184 毫米、深 150 毫米。它專為第三產業建筑 (HVAC) 中最常見的流體管理應用而設計，如供暖、通風、空調和泵送。它符合國際標準 IEC/EN 61800-5-1 和 IEC/EN 61800-3（抗擾度和傳導和輻射 EMC 發射）。它還通過了 CE、UL、CSA、C-Tick 和 NOM 認證。Altivar 212 提供可選的電機電感器，可增加驅動器和電機之間的電纜長度并限制電機端子處的干擾。由于有 4 個固定孔，它設計為垂直安裝在面板上（+/- 10°）。Altivar 212 驅動器具有眾多功能和標準集成的通信協議，Modbus、METASYS N2、APOGEE FLN P1 和 BACnet，因此可以輕松適應所有樓宇管理系統。
? 集中技術管理
? 即時查看能耗
? 用戶友好
? 尺寸緊湊
? 維護簡單
This Altivar 212 variable speed drive can feed 3-phase asynchronous motors. Its protection index is IP21 and it has a built-in EMC filter. It works at a rated power up to 4kW / 5hp and a rated voltage from 380V to 480V AC. Its design is based on eco-energy with a reduction in energy consumption of up to 70% compared to a conventional control system. Thanks to its cable temperature rise reduction technology, the Altivar 212 drive offers immediate, disturbance-free operation avoiding additional options such as a line choke or DC choke to deal with current harmonics. It weighs 3.35kg and its dimensions are, 142mm wide, 184mm high, 150mm deep. It is specifically designed for the most common fluid management applications in tertiary sector buildings (HVAC) like heating, ventilation, air conditioning and pumping. It conforms to international standards IEC/EN 61800-5-1 and IEC/EN 61800-3 (immunity and conducted and radiated EMC emissions). It is also CE, UL, CSA, C-Tick and NOM certified. The Altivar 212 offers optional motor chokes which can increase the maximum cable lengths between the drive and the motor and limit disturbance at the motor terminals. It is designed to be mounted in vertical position (+/- 10 °) on a panel, thanks to 4 fixing holes. The Altivar 212 drive can easily be adapted to all building management systems thanks to its numerous functions and communication protocols integrated as standard, Modbus, METASYS N2, APOGEE FLN P1 and BACnet.
? Centralized technical management
? Instant viewing of the energy consumption
? User-friendly
? Compact size
? Simple maintenance
SCHNEIDER驅動器ALTIVAR 212系列其他常用型號：
SCHNEIDER ATV212HD11N4
SCHNEIDER ATV212HU75N4
SCHNEIDER ATV212HD15N4
SCHNEIDER ATV212HD18N4
SCHNEIDER ATV212HU40N4
SCHNEIDER ATV212HU55N4
SCHNEIDER ATV212HD30N4
SCHNEIDER ATV212HU22N4
SCHNEIDER ATV212HD22N4
SCHNEIDER ATV212HU15N4
SCHNEIDER ATV212HD37N4
SCHNEIDER ATV212HD45N4
