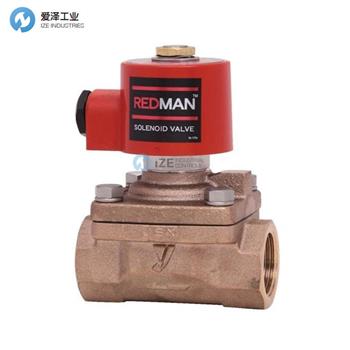

YOSHITAKE電磁閥DP-200系列技術參數
Specifications | |
Features | AC, diaphragm, normally closed |
Type | Diaphragm type solenoid valve |
Specifications | |
Product type | Solenoid Valve_Diaphragm |
Nominal size | 10A (3/8") - 50A (2") |
Application | Water, air, N2 gas, CO2 gas (dry), Ar gas |
End connection | JIS Rc screwed |
Max. pressure | 1 MPa |
Working pressure | 0 - 1 MPa (not usable under vacuum) |
Max. temperature | 60 degree(C) (5 - 60 degree(C) no freeze condition) |
Min. differential pressure | 0 MPa (0.1 MPa or more is required when installed with the coil sideways) |
Ambient temperature | Max. 50 degree(C) (no freeze condition) |
Rated voltage | AC 110/220V selective type - 50/60Hz common |
Valve seat leakage | None (by confirming pressure gauge visually) |
Installation posture | Horizontal or vertical (the coil has to be within 90 degrees from upward position) |
Protection class | IP64 |
Material | |
Body | Bronze |
Valve | NBR (Diaphragm) |
YOSHITAKE電磁閥DP-200系列介紹
* 減少水擊沖擊，縮短閥門關閉時間
* 閥門部件采用合成橡膠，閥座無泄漏
* 適用于 0 - 1.0 MPa 的寬壓力范圍（如果線圈側向設置，則為 0.1 - 1.0 MPa）
* The shock of water hammer is reduced, and the closing time of valve is shortened
* No leakage at valve seat because synthetic rubber is used for valve part
* Usable for wide pressure range of 0 - 1.0 MPa (0.1 - 1.0 MPa if the coil set sideways)
YOSHITAKE電磁閥DP-200系列其他常用型號：
YOSHITAKE DP-200 10A
YOSHITAKE DP-200 15A
YOSHITAKE DP-200 20A
YOSHITAKE DP-200 25A
YOSHITAKE DP-200 32A
YOSHITAKE DP-200 40A
YOSHITAKE DP-200 50A
YOSHITAKE VALVE NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于YOSHITAKE電磁閥DP-200 32A的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for YOSHITAKE products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
YOSHITAKE電磁閥DP-200系列DP-200 32A技術參數及介紹
