SAUTER閥門BQE065F300技術參數
Technical data | |
Parameters | |
Nominal pressure | PN 16 |
Connection | Flange as per EN 1092-2, form B |
Valve characterstio, control passage | Equal-percentage |
Valve characterstic. mixing passage | Linear |
Contol ratio of valve | > 30:1 |
Stufing box | 2 EPDM O-rings |
Leakage rate | Class III as per DIN EN 60534-4 (0.001 x kvs) |
Valve stroke | 20 mm (DN 65...80) |
Ambient conditions1) | |
Operating temperature2) | -10...150 °C |
Operating pressure | Up to 120 °C 16 bar |
Standards and directives | |
Pressure and temperature data | EN 764, EN 1333 |
Flow parameters | EN 60534, (page 3) |
Pressure Equipment Directive | 97/23/EC (fluid group II) With CE label |
SAUTER閥門BQE系列介紹
BQE：三通法蘭閥，PN 16
特點
在封閉回路中連續控制冷水和熱水
水質符合VDI 2035標準
可與閥門執行器AVM 322(S)、AVM 234S和AVF 234S組合作為控制單元使用
不適合飲用水或潛在爆炸性環境
閥門采用符合EN 1092-2的法蘭連接，密封形式為B
調節閥，不含硅油，黑色涂漆
等百分比控制通道特性，可通過SUT（SAUTER通用技術）將閥門執行器設置為線性或二次特性
混合通道線性特性
當閥桿移出時，控制通道關閉
作為控制閥或分配閥使用
閥體和閥座由灰鑄鐵制成
不銹鋼閥桿
閥塞由不銹鋼制成，采用金屬對金屬密封
填料函由不銹鋼制成，帶有刮削環和EPDM材料制成的雙O型圈密封

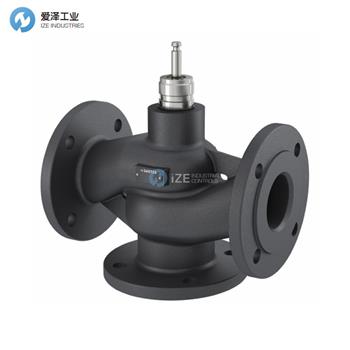

BQE: 3-way flanged valve, PN 16
Features
? Continuous control of cold and hot water in closed circuits
? Water quality as per VDI 2035
? In combination with valve actuators AVM 322(S), AVM 234S and AVF 234S as control unit
? Not suitable for drinking water or potentially explosive atmospheres
? Valve with flange connection as per EN 1092-2, seal form B
? Regulating valve, free of silicone grease, painted black
? Equal-percentage control passage characteristic, can be set with SUT (SAUTER Universal Technology) Valve actuators to linear or quadratic
? Mixing passage, linear characteristic
? The control passage is closed when the spindle is moved out
? Used as control valve or as distribution valve
? Valve body with seat made of grey cast iron
? Stainless-steel spindle
? Plugs made of stainless steel with metal-to-metal seal
? Stuffing box made of stainless steel with wiper ring and double O-ring seal made of EPDM
SAUTER閥門BQE系列其他常用型號：
SAUTER BQE065F300
SAUTER BQE080F300
SAUTER BQE100F300
SAUTER BQE125F300
SAUTER BQE150F300
SAUTER VALVE NEW + ORIGINAL+ ONE YEAR WARRANTY
