TESCOM調節器44-2253-241-010技術參數
Code | 44-2253-241-010 |
Basic series | 44-22 |
Body material | 5 – Nickel Alloy (Hastelloy?) |
Outlet pressure ranges | 3 – 0-250 psig 0-17.2 bar |
Inlet and outlet port type | 2 – NPTF |
Inlet and outlet port size | 4 – 1/4" |
Inlet pressure | 1 – 3500 psig 241 bar |
Modifications | -010 – Outlet gauge port at 90° |

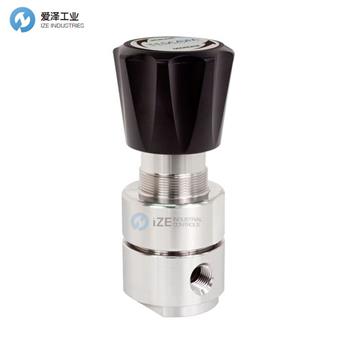

TESCOM調節器44-2200系列介紹
TESCOM 44-2200 系列是一款緊湊、輕便的高純度單級調節器，適用于流量小于 5 SCFM / 141 SLPM 的特種、易燃和工業氣體。其防擴散金屬隔膜密封可確保氣體純度和完整性。
特點和優點
? 緊湊
? 設計用于最大限度地減少污染，并準確調節任何腐蝕性、非腐蝕性或有毒氣體
? 黃銅型號為控制非腐蝕性介質提供了額外的經濟性
? 金屬對金屬隔膜與閥體密封可確保最小程度的內外側泄漏
? 波紋隔膜提供出色的精度和較長的使用壽命
? 提供面板安裝
? 300 系列不銹鋼或黃銅閥蓋
? 提供符合 NACE 要求的設計
TESCOM 44-2200 Series is a compact, lightweight high purity single-stage regulator for specialty, flammable, and industrial gas flows of less than 5 SCFM / 141 SLPM. Its diffusion-resistant metal diaphragm seal ensures gas purity and integrity.
Features and Benefits
? Compact
? Designed to minimize contamination and provide accurate regulation of any corrosive, non-corrosive, or toxic gas
? Brass model provides added economy for control of non-corrosive media
? Metal-to-metal diaphragm to body seal ensures minimum inboard and outboard leakage
? Convoluted diaphragm delivers excellent accuracy and long service life
? Panel mounting is available
? 300 Series Stainless Steel or Brass bonnet
? NACE compliant designs are available

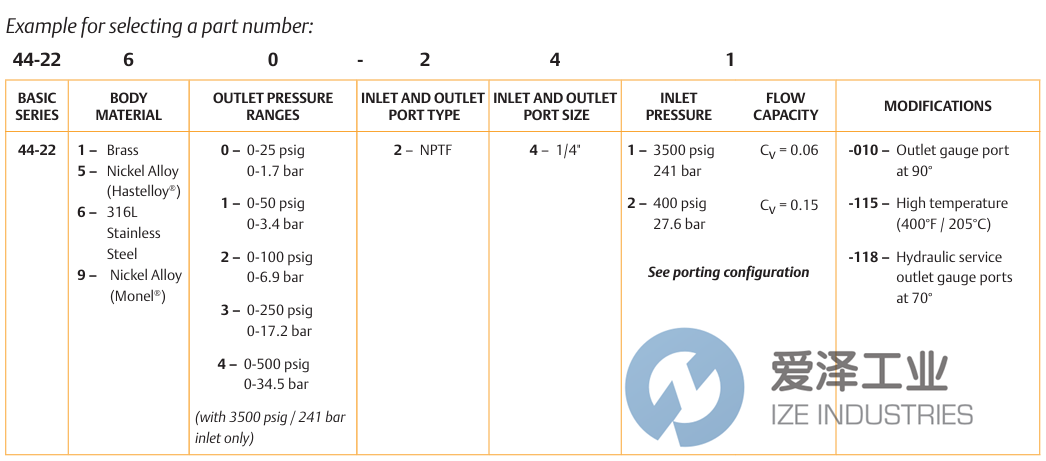

TESCOM調節器44-2200系列選型
TESCOM調節器44-2200系列其他常用型號：
TESCOM 44-2253-241-010
TESCOM 44-2213-242-010
TESCOM 44-2260-242-012
TESCOM 44-2261-241-388
TESCOM 44-2262-942-316
