COTRUST模擬輸入模塊CTH3 AIS-040S1技術參數
Technical Spec | |
Performance Parameters | |
Characteristics | AIS-040S1 |
Physical Characteristics | |
Dimension（W×H×D） | 34×115×100 mm |
Power Characteristics | |
Rated input voltage | 24V DC |
Input voltage range | 20.4V~28.8V DC |
Input current | 70mA |
Reverse polarity protection | Yes |
Bus power voltage | +5V DC |
Bus power current | 90mA |
LED lights Diagnostics | |
24V power LED | On：24VDC normal power；Off：No 24VDC power supply |
SF LED | On：system-down；Off：No error |
General Characteristics | |
Input type | voltage or current (differential input) |
Number of inputs | 4 |
input Range | Voltage: Unipolar:0~5V，0~10V,Bipolar:±2.5V，±5V |
Maximum input voltage | 30V DC |
Maximum input current | 40mA |
Input impedance | Voltage: ≥2MΩ |
Data Format | Voltage:0~+32000(Unipolar),-32000~+32000(Bipolar) |
Input step response | 4 channel 5ms (fastest) |
Module update frequency (all channels) | 4 channels support 200Hz，100Hz，50Hz，20Hz，10Hz configuration |
Common Mode Rejection | ＞40dB |
Channel Crosstalk | ＞60dB |
Common mode voltage | -12V≤ Signal voltage + common-mode voltage ≤ + 12V |
Resolution | Unipolar: 12bit |
measuring principle | Successive Approximation |
Measurement error | 0.5%（Max） |
Disconnection detection (only for 4 ~ 20mA) | Break Calibration: -32768, 32767， 2 values optional |
Isolation | Field to Logic: 500V AC |
Diagnostic | Unipolar: 0 Bipolar：-32768 |

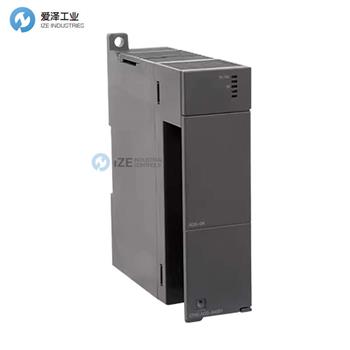

COTRUST模擬輸入模塊CTH3 AIS-040S1產品介紹
模擬電壓、電流輸入,4AI x 12bit
Analog voltage and current input,4AI x 12bit
COTRUST模擬輸入模塊AI系列其他常用型號：
COTRUST CTH3 AIS-040S1
COTRUST CTH3 AIV-080S1
COTRUST CTH3 AIC-080S1
COTRUST ANALOG INPUT MODULES NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于COTRUST模擬輸入模塊CTH3 AIS-040S1的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for COTRUST products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
