SHAVO調節器SB70系列技術參數
Parameters | Specifications | |
Pipe Threads | G ?, 1, 1?, 1? Parallel (F) Standard | |
Body Material | Al. Alloy die-cast | |
Bowl Material | Al. Alloy Metal with sight glass | - Standard |
Filter Element Size | 40 micron (std) : 5, 25 micron (Optional) | |
Filter Element Material | Plastic (Polypropylene) std. | |
Maximum Inlet Pressure | With Metal Bowl Manual Drain | : 250 psig (17.5 bar) |
Maximum Operating Temperature (ambient) | 80o (175oF) | |
Standard Nominal Flow Rate at 10 bar (150 PSI) Inlet pressure 6 bar (87 PSI) set pressure and a drop of 1 bar (14.5 PSI) from set | 3/4 | 515 scfm (243 dm3/sec ) CV (9.70) |
Drain | Manual | - Standard |
Pr. Adjustment | Non-rising plastic knob - Standard | |
Regulated secondary outlet | Spring Range | Gauge Range |
pressure range andrecommended Pressure gauge range available in psi (bar) | 3-30 psi (0.21 - 2.1 bar) | 0-35 psi (0 - 2.5 bar) |
Gauge Size | 50 mm (Dial Size) | |
Gauge Port | Rc 1/8 | |
Gauge connection | Back | |
Mounting Bracket | Optional | |
Panel Mounting | Available - Optional | |
Pressure Gauge (scale) | Kg/cm2 (PSI) | - Standard (For Domestic Market) |

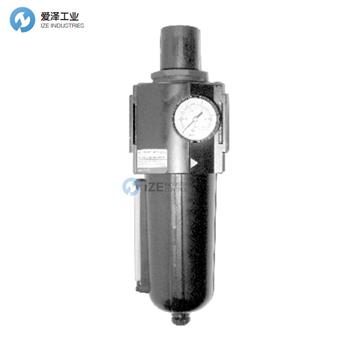

SHAVO調節器SB70系列介紹
Vayu Large - (70) (G 3/4、G 1、G 1 1/4、G 1 1/2)
特點
Shavo 的 VAYU 系列大流量范圍組合裝置將過濾器和調節器組合成一個緊湊裝置
這是一種節省空間的設計，適用于需要有效過濾污染物、去除液態水和控制壓力的壓縮空氣系統的一般應用
Vayu Large - (70) (G 3/4 , G 1 , G 1 1/4 , G 1 1/2 )
features
Shavo's VAYU Series Large Flow Range combination unit combines filter and regulator into one compact unit
It is a space saving design for general application in compressed air systems where effective contamination filtration, liquid water removal and controlled pressure in required
SHAVO調節器SB70系列其他常用型號：
SHAVO SB70K-CG-M6D-RGLN-XXX -XXX
SHAVO SB70K-8G-M3D/RGLN
SHAVO SB70K-BG-A3D/RGLN
SHAVO SB70K-8G-M3D/RGLN
SHAVO SB70K-BG-A3D/RGLN
SHAVO Regulator NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于SHAVO調節器SB70K-CG-M6D-RGLN-XXX -XXX的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for SHAVO products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
