SAUTER壓力開關DSF/DSB系列規格
Technical data | |
Power supply | |
Maximum load with gold-plated contacts1) | 400 mA, 24 V, 10 VA |
Minimum load with gold-plated contacts | 4 mA, 5 V |
Maximum load with silver-plated contacts | 10(4) A, 250 V~, 50 W, 250 V= |
Minimum load with silver-plated contacts | 100 mA, 24 V |
Parameters | |
Pressure connection | G?" male |
Ambient conditions | |
Ambient temperature | ?20…70 °C |
Construction | |
Housing | Transparent cover |
Housing material | Impact-proof thermoplastic |
Device plug | Standard plug with female cable connector for cable ? 6…10 mm |
Standards, directives | |
Type of protection2) | IP65 (EN 60529) |
Protection class | I (IEC 60730) |
Test mark3) | TüV |
PED 2014/68/EU | VdTüV pressure information sheet |
Ship-approved | Germanischer Lloyd (GL) Lloyds Register |
CE conformity according to | |
EMC Directive 2014/30/EU | EN 61000-6-1, EN 61000-6-2, |
Low-Voltage Directive 2014/35/EU | EN 60730-1, EN 60730-2-6 |
Machinery Directive 2006/42/EC (according to Appendix II, 1B) | EN ISO 12100 |
SIL-conformity as per SIL 2 | |
Standards | IEC 61508 parts 1-2 and 4-7 |
SAUTER壓力開關DSF/DSB系列產品介紹

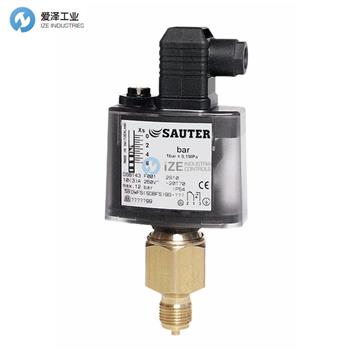

DSB, DSF: Pressure monitors and pressure switches
How energy efficiency is improved
Control and monitoring according to needs and with no auxiliary energy
Features
? For regulating and monitoring pressure in liquids, gases and vapours
? Adjustable lower switching point
? Adjustable switching difference
? Sealable
? Pressure sensor made of brass for non-aggressive media (DSB)
? Pressure sensor made of stainless steel for aggressive media (DSF)
? SIL 2 certified as per EN 61508
? Approved for marine applications (GL and LR certified)
DSB、DSF：壓力監測器和壓力開關
如何提高能源效率
根據需要進行控制和監控，無需輔助能源
特征
? 用于調節和監測液體、氣體和蒸汽中的壓力
? 可調下開關點
? 可調開關差
? 可密封
? 用于非腐蝕性介質的黃銅壓力傳感器 (DSB)
? 用于腐蝕性介質的不銹鋼壓力傳感器 (DSF)
? 根據 EN 61508 獲得 SIL 2 認證
? 獲準用于船舶應用（GL 和 LR 認證）
SAUTER壓力開關DSF/DSB系列其他型號：
SAUTER DSB138F001
SAUTER DSF170F001
SAUTER DSB143F001
SAUTER DSB146F001
SAUTER DSB152F001
SAUTER DSB158F001
SAUTER DSB170F001
SAUTER DSF125F001
SAUTER DSF127F001
SAUTER DSF135F001
SAUTER DSF138F001
SAUTER DSF140F001
SAUTER DSF143F001
SAUTER DSF146F001
SAUTER DSF152F001
SAUTER DSF158F001
SAUTER DSF170F001
SAUTER Pressure Switch NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于SAUTER壓力開關DSF170F001的疑問，請隨時與我們電聯，（021-3100 6702），我們將盡全力解決您的問題。
If you have any question for SAUTER products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.
SAUTER 壓力開關DSF170F001介紹
