SHAVO調節器SB67系列技術參數
Parameters | Specifications | |
Fluid | Compressed Air | |
Pipe Sizes | 1/2”, 3/4” | |
Port Thread | NPT | - Standard |
Max. Inlet Pressure | with Metal Bowl Manual Drain | : 435 psig (30 bar) |
Max. Operating Temperature (Ambient) | +80°C | |
Filter Element Size | 25 micron - Standard 5,40 micron - Optional | |
Filter Element Material | SS 316 - Standard, Sintered Bronze/Plastic - Optional | |
Material of Construction | Stainless Steel as per AISI 316L | |
Body, Bonnet, Bowl | SS 316L with NACE Compliance (MR 0175) | |
Internal Parts | SS 316L | |
External Parts | SS 316L with NACE Compliance (MR 0175) | |
Diaphragm Assembly | Synthetic Rubber with PTFE - Standard | |
Elastomers | Low Temperature Nitrile Elastomer (LNBR) | -60 to +80°C |
Bowl Capacity | 160 ml. | |
Regulated Sec. Pr. Ranges | 15.0 - 150 psi (1.0 - 10.0 bar) | - Standard |
Standard nominal flow rate (At supply pressure of 150 psi and 14.5 psi drop in sec. pressure of 87 psi) | 1/2": 192 scfm (91 dm3/sec) CV (3.62) | |
Drain | Manual | - Standard |
Type | Relieving | - Standard |
Pressure Adjustment | Hex Headed Adjusting screw | - Standard |
Gauge Port (2 nos.) | 1/4” BSPT (Fe) | - Standard |
Mounting | P.M. NUT | - Standard |
Weight | 3.0 Kgs. | |
Pressure Gauge (scale) | Kg/cm2 (PSI) | - Standard (For Domestic Market) |
SHAVO調節器SB67系列介紹
不銹鋼 - (67) (G ?, G ?)
特點

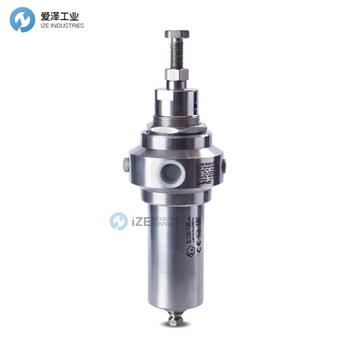

Shavo 的過濾調節器型號 SB67 是一款高性能產品，適用于腐蝕性環境中的儀表空氣
應用包括海洋環境、石油和天然氣生產、化學品和食品加工、醫學分析等
CE、EAC [CUTR10（相當于 GOST R&K）] 認證
符合 IEC 61508 規定的 SIL 3 標準
外部金屬部件符合 NACE 標準 MR-0175*
Stainless Steel - (67) (G ?, G ?)
features
Shavo's' Filter-Regulator Model SB67 is designed as a high-performance product for instrument air use in corrosive atmospheres
Applications include marine environments, oil and gas production, chemicals and food processing, medical analysis etc
CE, EAC [CUTR10 (equivalent to GOST R&K)] approved
SIL 3 capable as per IEC 61508
External Metallic parts meet NACE standard MR-0175*
SHAVO調節器SB67系列其他常用型號：
SHAVO SB67-881-M7MN-BH-J00-XXX
SHAVO SB67-400-M7LA-NT-XXX-XXX
SHAVO SB67-621-M4MN-NH 3-4IN
SHAVO Regulator NEW + ORIGINAL+ ONE YEAR WARRANTY
