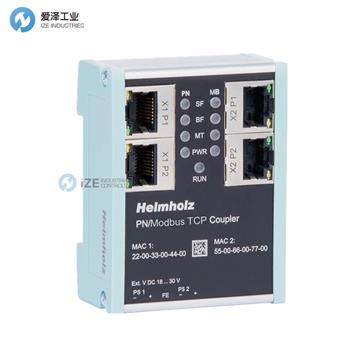

HELMHOLZ耦合器700-159-3MB01技術參數
PROFINET Interface: | |
Number | 2 |
Protocol | PROFINET IO as defined in IEC 61158-6-10 |
Transmission rate | 100 Mbps full duplex |
I/O image size | max. 1024 bytes of input and output data |
Connection | 2x RJ45 |
Integrated switch | Yes |
Features | Media Redundancy Protocol (MRP), |
ModbusTCP interface: | |
Protocol | ModbusTCP server |
Transmission rate | 10/100 Mbps full duplex |
I/O image size | 65536 coil bits, |
Connection | 2x RJ45 |
Integrated switch | Yes |
Supports Modbus function codes | 1, 2, 3, 4, 5, 6, 15, 22, 23 |
Status indicator: | 9 LEDs function status, 8 LEDs Ethernet status |
Voltage supply: | 24 V DC (18 ... 28 V DC) |
Current draw: | max. 210 mA |
Ambient conditions: | |
Ambient temperature | 0 °C to 60 °C |
Transport and storage temperature | -20 °C to 80 °C |
Protection rating | IP 20 |
Certifications | CE |
CE: | |
RoHS | Yes |
REACH | Yes |
HELMHOLZ耦合器700-159-3MB01產品介紹
使用 PN/ModbusTCP 耦合器，可以簡單、毫不復雜地將 PROFINET 網絡與 ModbusTCP 網絡連接起來。PN/ModbusTCP 耦合器支持 PROFINET 控制器與 ModbusTCP 參與者之間的數據傳輸。在網絡一側接收到的輸入數據將作為輸出數據提供給另一側。IO 數據傳輸實時進行，并且盡可能快，無需額外的處理塊。
傳輸數據的最大大小為 1024 字節輸入/輸出數據。最多可提供 300 個 IO 模塊插槽。通過 GSDML 文件可以集成到 PLC 工程工具中；無需特殊配置軟件。
除了 PROFINET / ModbusTCP 通信之外，PN/ModbusTCP 耦合器還在網絡兩側提供 MQTT 發布器。這樣，通過網關交換的值也可以通過 MQTT 分發到可視化或操作數據記錄系統。
? 非常緊湊的設計，適合 DIN 導軌安裝
? 冗余電源
? 網絡電氣隔離
? 最多 1024 個輸入/輸出數據
? 300 個可配置插槽用于 PROFINET IO 數據
? 支持完整的 ModbusTCP 地址空間，可自由分配 IO 數據
? 支持多個同時的 ModbusTCP 客戶端
? 僅使用 GSDML 文件進行配置，無需其他軟件
? 網絡兩側均有 MQTT 發布器（PROFINET 和 ModbusTCP）
Simple and uncomplicated connection of a PROFINET network with a ModbusTCP network is possible with the PN/ModbusTCP Coupler. The PN/ModbusTCP Coupler enables data transmission between a PROFINET controller and ModbusTCP participants. Received input data on one of the network sides is made available as output data to the other network side. The IO data transfer takes place live and as quickly as pos-sible without additional handling blocks.
The maximum size of the transmitted data is 1024?bytes of input/output data. Up to 300?slots for IO modules are available. The integration into the PLC engineering tool is made possible by a GSDML file; special configuration software isn?t necessary.
In addition to the PROFINET / ModbusTCP communication, the PN/ModbusTCP Coupler also makes an MQTT Publisher available on both network sides. In this way, the values exchanged via the gateway can also be distributed via MQTT to visualization or operating data recording systems.
? Very compact design for DIN rail mounting
? Redundant power supply
? Galvanic isolation of the networks
? Up to 1024 input/output data
? 300 configurable slots for PROFINET IO data
? Supports the full ModbusTCP address space with free assignment of IO data
? Supports multiple simultaneous ModbusTCP clients
? Configuration only with GSDML file, no additional software required
? MQTT Publisher on both network sides (PROFINET & ModbusTCP)
HELMHOLZ耦合器其他常用型號：
HELMHOLZ 700-159-3MB01
HELMHOLZ 700-159-3MB02
HELMHOLZ 700-158-3PN02
HELMHOLZ 700-158-3PN01
HELMHOLZ 700-158-3DP02
HELMHOLZ 700-158-3DP01
HELMHOLZ 700-160-3EN02
HELMHOLZ 700-162-3MQ02
HELMHOLZ 700-161-3EC02
HELMHOLZ COUPLER NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于HELMHOLZ耦合器700-159-3MB01的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for HELMHOLZ products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
