BECKHOFF接口模塊EK1501-0010技術參數
Technical data | EK1501-0010 |
Task within EtherCAT system | coupling of EtherCAT Terminals (ELxxxx) to 100BASE-FX EtherCAT networks, with identity verification |
Data transfer medium | single-mode glass fiber 9/125 μm (SM) |
Distance between stations | max. 20,000 m (100BASE-FX) |
Number of EtherCAT Terminals | up to 65,534 |
Type/number of peripheral signals | max. 4.2 GB addressable I/O points |
Number of configurable IDs | 4096 |
Protocol | EtherCAT |
Delay | approx. 1 μs |
Data transfer rates | 100 Mbit/s |
Bus interface | 2 x SC Duplex |
Power supply | 24 V DC (-15%/+20%) |
Current consumption from US | 150 mA + (∑ E-bus current/4) |
Current consumption from UP | load |
Current supply E-bus | 2000 mA |
Power contacts | max. 24 V DC/max. 10 A |
Electrical isolation | 500 V (power contact/supply voltage/Ethernet) |
Weight | approx. 190 g |
Operating temperature | -25…+60°C |
Storage temperature | -40…+85°C |
EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
Relative humidity | 95%, no condensation |
Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
Protect. rating/installation pos. | IP20/variable |
Approvals/markings | CE, CCC, UL, ATEX, IECEx |
Ex marking | ATEX: II 3 G Ex ec IIC T4 Gc |
BECKHOFF接口模塊EK1501-0010產品介紹
EK1501-0010 EtherCAT耦合器采用單模光纖連接，連接EtherCAT現場總線協議與EtherCAT端子之間的橋梁。該耦合器將以太網（100BASE-FX）傳遞的電文轉換為E-bus信號表示。一個站點由一個耦合器和任意數量的EtherCAT端子組成，后者會自動檢測并在過程圖像中單獨顯示。
主要特點：
連接技術：2個單模光纖SC雙工接口
連接距離：最長可達20公里
支持3個ID開關以實現可變拓?fù)浣Y(jié)構
系統中EtherCAT端子的最大數量：高達65,535個

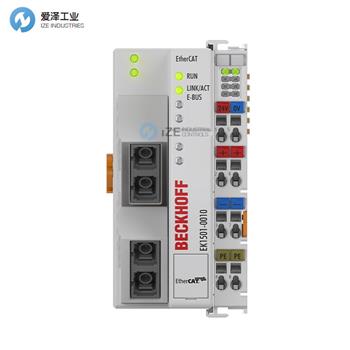

EK1501-0010配備兩個SC雙工端口和三個十六進制ID開關。耦合器通過上方的以太網接口連接到網絡，下方的SC雙工插座可用于連接同一段中的其他EtherCAT設備。單模光纖連接支持兩個耦合器之間的距離長達20公里。通過十六進制ID開關，可以為一組EtherCAT組件分配唯一ID，從而實現靈活的網絡定位。多種拓?fù)浣Y(jié)構（如線型或星型）非常容易實現。此外，還可使用EtherCAT連接器或擴展器進行網絡擴展。
系統和現場電源各為24V直流，直接在耦合器上供電。連接的EtherCAT端子從供電系統電壓獲取通信所需的電流。耦合器最多能提供5V、2A的電源。如需要更大電流，應配合使用電源終端（如EL9410）?，F(xiàn)場電源通過帶最大10A容量的接線觸點傳輸至各個I/O組件。
The EK1501-0010 EtherCAT Coupler with single-mode fiber-optic connection is the link between the EtherCAT protocol at fieldbus level and the EtherCAT Terminals. The coupler converts the passing telegrams from Ethernet 100BASE-FX to E-bus signal representation. A station consists of a coupler and any number of EtherCAT Terminals that are automatically detected and individually displayed in the process image.
Special features:
connection technology 2 x single-mode fiber-optic connection via SC duplex
connection lengths up to 20 km
3 ID switches for implementing variable topologies
number of EtherCAT Terminals in the overall system: up to 65,535
The EK1501-0010 has two SC duplex sockets and three hexadecimal ID switches. The coupler is connected to the network via the upper Ethernet connection. The lower SC duplex socket may be used to connect further EtherCAT devices in the same segment. The single-mode fiber-optic connection facilitates distances between two couplers of up to 20 km. A group of EtherCAT components can be assigned a unique ID via the hexadecimal ID switches. This group can then be located at any position within the EtherCAT network. Variable topologies are therefore easily implementable. In addition, an EtherCAT junction or an EtherCAT extension can be used for the extension or for setting up a line or star topology.
The system and field supply, each 24 V DC, is provided directly at the coupler. The attached EtherCAT Terminals are supplied with the current required for communication from the supplied system voltage. The coupler can supply a maximum of 5 V and 2 A. Power feed terminals (e.g. EL9410) must be integrated if more current is required. The field supply is forwarded to the individual I/O components via the power contacts with up to 10 A.
