JORC定時器EZ-1技術參數
Specifications | |
Maximum compressor capacity | Any size |
Pressure range | 0 - 16 bar |
Supply voltage options | 24 - 240 VAC/DC 50/60Hz. |
Medium temperature | 1 - 55 °C |
Ambient temperature | 1 - 55 °C |
Timer cycle range (on / off) | 0.5 - 10 seconds / 0.5 - 45 minutes |
Timer pcb | SMD technology, ensuring consistency in production |
Timer cycle indication | Bright LED illumination |
Test feature | Yes |
Valve type | 2/2 way, direct acting |
Valve orifice | 4 mm |
Valve seals | FPM |
Inlet/outlet connections | 1/4″, 3/8″, 1/2″ (BSP or NPT) |
Inlet connection height | 1 cm |
Serviceable valve | Yes |
Valve housing material | Brass |
Power connection | DIN 43650-A |
Environmental protection | IP65 (NEMA4) |
JORC定時器EZ-1產品介紹
EZ-1 定時器控制冷凝水排放器是電磁閥和電子定時器的組合，旨在自動清除壓縮空氣系統中的冷凝水。
EZ-1 旨在清除壓縮機、壓縮空氣干燥器和接收器中的冷凝水，最高可達 16 bar。
EZ-1 以最低的成本提供真正的安裝簡便性。 EZ-1 是一種批量生產的產品，有各種閥門連接尺寸和定時器顏色可供選擇。

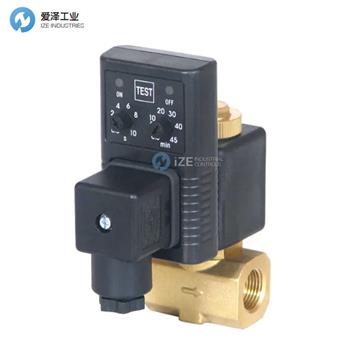

The EZ-1 timer controlled condensate drain is a combination of a solenoid valve and an electronic timer designed to automatically remove condensate from compressed air systems.
The EZ-1 is designed to remove condensate from compressors, compressed air dryers and receivers up to maximum 16 bar applications.
The EZ-1 offers true installation simplicity at the lowest possible cost. The EZ-1 is a mass produced product available in various valve connection sizes and timer colour options.
JORC定時器其他常用型號：
JORC EZ-1
JORC FLUIDRAIN
JORC FLUIDRAIN-COMBO
JORC FLUIDRAIN-HP-S
JORC TEC-44
JORC TEC-11
JORC ELECTRONIC TIMER DRAIN NEW + ORIGINAL+ ONE YEAR WARRANTY
