JOHNSON CONTROLS差壓開關P32系列技術參數
Specifications | |
Product | P32, Differential Pressure Switch |
Ambient Temperature | Minimum: -40°F (-40°C) |
Maximum Pressure at Either Connection | 1 PSIG (6.9 kPa) |
Set Point | Normally Factory Set at Bottom of Range with Diaphragm in a Vertical Plane, SPDT Models Normally Set Where Red to Yellow Contacts Open. Factory Setting is Made At Room Temperatures |
Diaphragm Material | Buna-N |
Enclosure (Body and Wiring Compartment) | Molded Polycarbonate |
Cover Material | .032" (0.8 mm) Cold Rolled Steel, Zinc Plated |
Diaphragm Housing Material | .040" (1 mm) Cold Rolled Steel, Zinc Plated |
Connectors | High Pressure: Metal, 1/8 Female NPT Inside, 1/2" NPSM Outside for Mounting |
Mounting | Direct Mounting or with Optional Mounting Bracket. Normal Mounting Position is with Diaphragm in a Vertical Plane |
Shipping Weight | Less Bracket: |

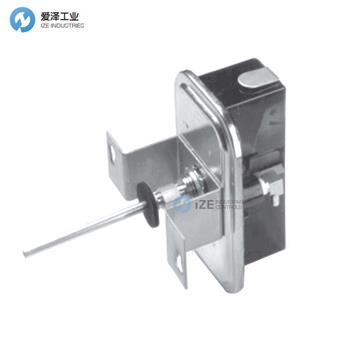

JOHNSON CONTROLS差壓開關P32系列介紹
P32 壓差開關用于感應管道中的空氣流動。與電熱帶加熱器一起使用時，當氣流停止時，開關可以接線以打開電路并切斷加熱器的電源。
特點
? 易于讀取的設定點刻度。
? 小巧緊湊。
? 多種安裝選項。
? 耐用結構。
? 靈敏的切換壓差。
The P32 differential pressure switch is used to sense flow of air in ducts. When used with electric strip heaters, the switch can be wired to open the circuit and de energize the heaters when air flow stops.
Features
? Easy-to-read set point scale.
? Small and compact.
? Versatile mounting options.
? Durable construction.
? Sensitive switching differential.
JOHNSON CONTROLS差壓開關P32系列其他常用型號：
JOHNSON CONTROLS P32AC-1
JOHNSON CONTROLS P32AC-2
JOHNSON CONTROLS P32AF-1
JOHNSON CONTROLS P32AF-2
JOHNSON CONTROLS P32CF-1
JOHNSON CONTROLS P32AJ-1
JOHNSON CONTROLS P32AJ-2
