COTRUST數字輸出模塊CTH3 DQT-160S1技術參數
Specifications | |
Product model | DQT-16 |
Order number | CTH3 DQT-160S1 |
Dimension(W×H×D) | 34×115×100 mm |
Output points | 16 |
Current consumption | 24VDC: 95mA |
Output type | Solid state -MOSFET, source type |
Output rated voltage | 24VDC |
Output voltage range | 20.4~28.8VDC |
Logic 1(Min.) | 20VDC |
Logical 0(Max.) | 0.1VDC,10KΩload |
Output current (Max.) | 0.5A |
Each common end current | Max. 4A |
Output leakage current (Max.) | 15uA |
Inrush current | 8A，100ms |
Modulation load | 5W |
Contact resistance | 0.3Ω，Max.0.6Ω |
Output delay | Disconnect to connected (Max.):50us, connected to disconnected (Max.):200us |
Output frequency (Max.) | 1kHz |
Isolate | site-to-logic: 500VAC,Last 1min |
Separate points for each group | 8 |
The number of output points connected simultaneously | 16 |
Two outputs in parallel | Supports parallel connection of 2 outputs in the same group |
Cable length | shield: 500m |
Note: | CTH3 DQT-320S2 adopts plug and pull type crimping terminal |

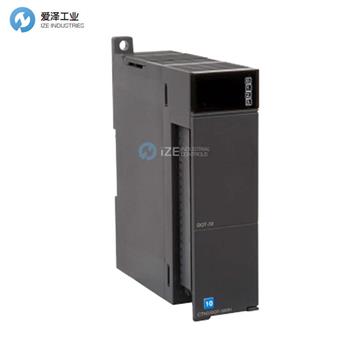

COTRUST數字輸出模塊CTH3 DQT-160S1產品介紹
DQT-160S1 數字模塊
晶體管輸出，16 x 24VDC
DQT-160S1 digital Modules
Transistor output,16 x 24VDC
COTRUST數字輸出模塊CTH300系列其他常用型號：
COTRUST CTH3 DQT-080S1
COTRUST CTH3 DQT-160S1
COTRUST CTH3 DQT-320S2
COTRUST CTH3 DQR-080S1
COTRUST CTH3 DQR-160S1
COTRUST CTH3 DQN-160S1
