GEMU定位器1435000Z30201技術參數
Type: | 1435: Electro-pneumatic positioner ePos |
Fieldbus: | 000: Without |
Accessory: | Z: Accessory |
Action: | 3: Double acting |
Explosion-proof class: | 0: Without explosion-proof rating |
Option: | 2: 4 - 20 mA actual value output |
Flow rate: | 01: Electro-pneumatic, 50 l/min |
GEMU定位器1435000Z30201產品介紹
GEMü 1435 ePos 數字電動氣動定位器用于控制帶有單作用或雙作用線性或四分之一轉執行器的工藝閥，并使用外部行程傳感器檢測閥門的位置。它具有堅固的鋁制外殼，配有受保護的操作按鈕和 LCD 顯示屏，可使產品單獨適應控制任務?？梢酝ㄟ^集成節流閥調整操作時間。還可以連接和安裝到 NAMUR。因此，GEMü 1435 ePos 是高要求控制任務的最佳解決方案，特別是在環境條件惡劣的應用中。
? 操作和調試簡單
? 通過可拆卸端子進行簡單的電氣連接
? 在初始化期間自動優化閥門控制
? 空閑時不消耗空氣
? 堅固的涂層鋁制外殼

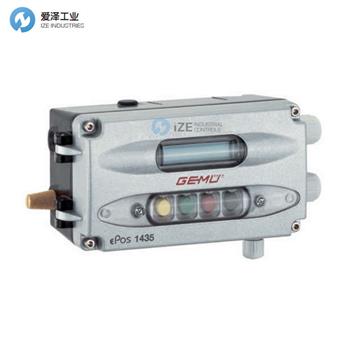

The GEMü 1435 ePos digital electro-pneumatic positioner is used to control process valves with single acting or double acting linear or quarter turn actuators, and detects the position of the valve using an external travel sensor. It has a robust aluminium housing with protected operating buttons and an LCD display which allows the product to be individually adapted to the control task. The operating times can be adjusted by integrated throttles. Connection and mounting to NAMUR is also possible. Therefore, the GEMü 1435 ePos is an optimal solution for control tasks with high requirements, especially in applications with harsh environmental conditions.
? Simple handling and commissioning
? Simple electrical connection by detachable terminals
? Automatically optimises the valve control during initialisation
? No air consumption when idle
? Robust coated aluminium housing

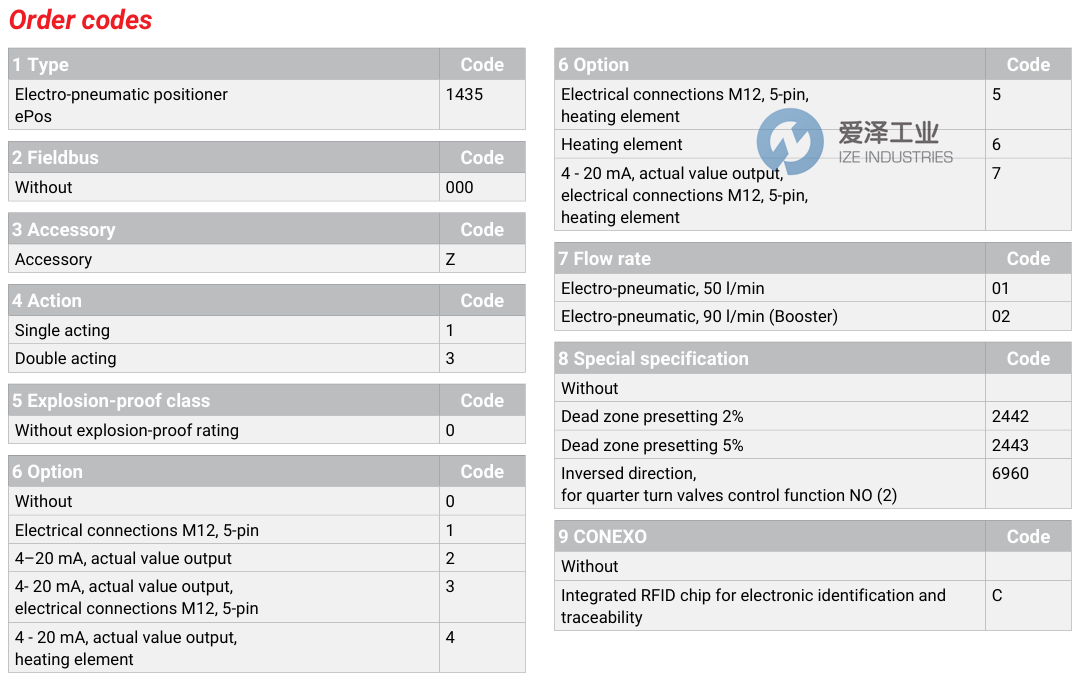

GEMU定位器1435系列選型
GEMU定位器1435系列其他常用型號：
GEMU 1435000Z30001
GEMU 1435000Z30001-C
GEMU 1435000Z30101
GEMU 1435000Z30201
GEMU 1435000Z30201-C
GEMU 1435000Z30301
GEMU 1435000Z30301-C
GEMU 1435000Z30401
GEMU 1435000Z30501
GEMU 1435000Z30601
GEMU 1435000Z30701
GEMU 1435000Z30101-C
GEMU POSITION CONTROLLER NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于GEMU定位器1435000Z30201的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for GEMU products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
GEMU定位器1435系列1435000Z30201技術參數及選型
