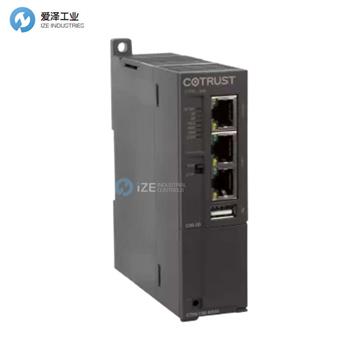

COTRUST CPU模塊CTH3 C35-001S2技術參數
Model No. | C35-01 |
Physical Features | |
Dimension (W×H×D) | 34×115×101.6 mm |
Power consumption | 19.2W |
Memory | |
User program memory | 32MB |
Power down to maintain space | 64KB |
Power supply features | |
Rated input voltage | 24V DC |
Input voltage range | 20.4V~28.8V DC |
Input current | 0.8A |
Reverse polarity protection | Yes |
Bus power supply voltage | +5V DC |
Bus supply current | 1.6A |
Isolation | Isolation between external power and system power |
LED indicator features | |
24V power indicator (green) | On: 24VDC power supply is normal, off: no 24VDC power supply |
SF indicator (red) | On: system failure, off: no error |
BF indicator (red) | On: bus failure, off: no error |
Run indicator (green) | On: system runs, off: the system stops |
STOP indicator (orange) | On: system stops; off: system runs |
RJ45 network port indicator | Green Blink: connected, off: unconnected |
CAN port indicator | Green Data receiving indicator |
Real time clock | |
Power down of maintain time | Power down retention time approx. 112 hours (typical value) |
Precision | Monthly deviation <60 seconds |
Read/set the real-time clock | Read/set via the SETRTC directive |
Protection function | |
Power protection | Power supply end provides reverse connection protection function and surge absorption function |
Interface protection | Communication port lightning protection |
Extend I/O capabilities | |
Supports INT-00 rack count of 1 CPU | 4 |
Maximum number of modules supported per rack | Support up to 8 modules, power, CPU, relay module is not including |
Supports ETC-00 rack count of 1 CPU | Supports up to 128 |
Number of modules supported per ECT-00 | Supports up to 8 modules |
Isolation | |
Power supply isolation | Isolation between external power and system power |
Communication isolation | Ethernet, RS485 isolation, CAN isolation |
COTRUST CPU模塊CTH3 C35-001S2產品介紹
CTH300-C運動控制CPU、32MB PM、掉電保存64KB數據、55M擴展總線；1個自由口、1個EtherCAT口、1個以太網口、1個CAN口、1個USB口。
CTH300-C motion control CPU, 32MB PM, 64KB data stored when power down, 55M expansion bus;1 Free port, 1 EtherCAT port, 1 EtherNET port, 1 CAN port,1 USB port.
COTRUST CPU模塊CTH3系列其他常用型號：
COTRUST CTH3 C35-001S2
COTRUST CTH3 C36-001S2
COTRUST CTH3 C37-001S2
COTRUST CTH3 C37-002S2
