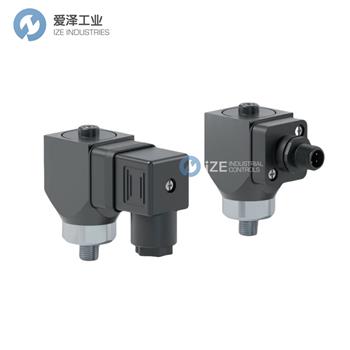

LAYHER壓力開關600010產品介紹
TECHNICAL DATES | |
order no. | 600 010 |
pressure satting range | 1-10bar |
working pressure max. | 10 bar |
bursting pressure | 20 bar |
de sign | spring safety membr anes |
diaphragm/seal | NBR. specal design VITON, CA. EPDM KALREZ |
manner of fastening | male thread |
ftting thread >Ac | G 1/4".G 1/8 M12x 1.5. M 10x1. M10x 1 cone |
mounting position | any |
ambient temperature | -25C bis + 85°C，higher temperatures on demand |
medium | air. hydraulic oil, oil emulsions, water, others on demand |
adjustability | under pressure |
switch back difference | 15% - 2596 |
mechanical lite | 106 |
material | galvanized steel. special design brass or VA |
welght | 230m |
switching element | microswitch - silver-plated contacts / special gold-plated contacts |
reference voltage | 250 V |
reference frequency | not over 100 Hz |
switching frequency max. | 200/min. |
electrical connection | by coupler socket PG9 DIN 43 650 |
protective system | IP65, terminale IP00 DIN 40 050 |
LAYHER壓力開關600系列其他常用型號：
LAYHER 600 002 311 11
LAYHER 600 010 311 11
LAYHER 600 010 321 11
LAYHER 600 070 351 11
LAYHER 600 200 351 12
LAYHER 600010
LAYHER PRESSURE SWITCH NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于LAYHER壓力開關600010的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for LAYHER products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
LAYHER壓力開關600010介紹
