ASA HYDRAULIK蝶閥SDA系列技術參數
Working Ranges | |
max. over pressure (open valve) | 16 bar |
max. differential pressure (closed valve) | 6 bar |
temperature range | -20°C to +80°C |
Materials | |
housing | cast iron |
lever | steel |
valve disc | aluminum |
seals | NBR |
Options | |
limit switch | mechanical or inductive type |
FPM sealings | contact us for the Viton valve |
range stainless steel | contact us for the stainless steel |
aluminum version | sizes 1?", 2", 2?", 3" on |

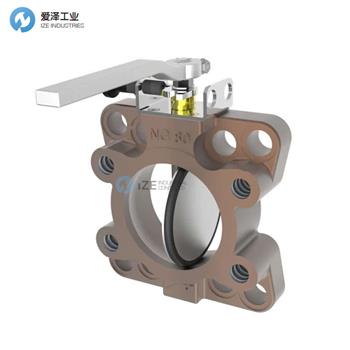

ASA HYDRAULIK蝶閥SDA系列介紹
帶有 SAE 和 DIN 連接的 asa 蝶形法蘭允許與彈性元件（橡膠補償器）組合，從而與泵端口建立短補償且經濟的連接?？梢酝ㄟ^新機制改變杠桿位置?？梢酝ㄟ^轉動開關支架來改變手柄方向（順時針或逆時針）。請注意，蝶形法蘭只能在安裝狀態下打開，并且密封有油脂或潤滑劑。適配器法蘭只能與拆卸的蝶形法蘭焊接在一起。
The asa butterfly flange with SAE and DIN connections allows the combination with an elastic element (rubber compensator) to make a short compensating and economical connection with the pump port. The lever position can be changed through our new mechanism. The handle direction (clockwise or counter clockwise) can be changed by turning the switch bracket. Please note that the butterfly flange may only be opened in mounted state and with greased or lubricated sealing. The adapter flange may only be welded with demounted butterfly flange.
ASA HYDRAULIK蝶閥SDA系列其他常用型號：
ASA HYDRAULIK SDA00040E AF40
ASA HYDRAULIK SDA00050E AF50
ASA HYDRAULIK SDA00063E AF63
ASA HYDRAULIK SDA00080E AF80
ASA HYDRAULIK SDA00100E AF100
ASA HYDRAULIK SDA0125 AF125
ASA HYDRAULIK VALVE NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于ASA HYDRAULIK蝶閥SDA00040E AF40的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for ASA HYDRAULIK products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
ASA HYDRAULIK蝶閥SDA系列SDA00040E AF40技術參數及介紹
