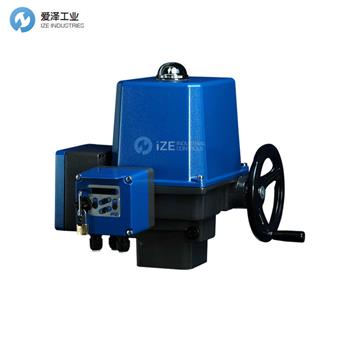

PS AUTOMATION執行器PSQ203AMS12技術參數
Operating Time/90° | 16 - 32 s (adjustable) | |||
Power Supply [V] | 230 VAC 1~ | 115 VAC 1~ | 24 VAC/DC | 360...575 VAC 3~ |
Normal Current ) [A] | 0.59 | 1.2 | 5.6(AC) / 3.5(DC) | 0.42 |
Maximum Current) [A] | 0.76 | 1.5 | 7.3(AC) / 4.6(DC) | 0.5 |
Power Consumption ) [W] | 115 | 115 | 108(AC) / 84(DC) | 110 |
Ambient Temperature [°C] | -20 to +60 °C | |||
Motor Protection | electronic motor current monitoring with safety cut-off | |||
Overvoltage category | II | |||
Break away force | adjustable up to +50% nominal force | |||
Duty Cycle IEC 60034-1,8 | S2 30 min S4 50% ED @ 25°C | |||
Set value and Feedback | current 0 (4)… 20 mA, voltage 0 (2)… 10 V adjustable, split-range operation possible | |||
Binary control | 24 V - 230 V for ON/OFF control (min. duration of pulse 1s) | |||
Valve Positioner Function | deadband adjustable from 0.5 .. 5%, shut-off minimum at torque switching | |||
Automatic Start-up | Recognizing the end position(s) and autoscaling set and feedback values | |||
Internal Fault Monitoring | Torque, set value, temperature, power supply, deviation of end positions, adjustable actions and signalisation | |||
Fault Indication Relay FIR | potential-free opening contact provides a freely definable collective fault signal | |||
Diagnostics Function | Stores number of motor starts, motor and total running time. Rolling data storage of set value, feedback value, torque, temperature and status | |||
Communication Interface | for parametrisation and diagnosis with USB data cable and software PSCS | |||
Cable Glands | 2 threaded holes ISO M20 x 1,5 (cable glands are not included) | |||
PS AUTOMATION執行器PS-AMS PSQ系列介紹
PS-AMS PSQ 包括增強型電子設備，帶有嵌入式微控制器和閃存，可控制和監控整個執行器功能。所有功能都集中在一塊電路板上，使執行器非常緊湊且操作安全。性價比非常高。
由于采用自動一鍵調試，PS-AMS PSQ 安裝速度很快。
– 可編程執行器
– 集成定位器和位置反饋
– 自動調試功能
– 綜合診斷功能
– 各種選項，其中包括電氣故障安全單元 PSCP、現場總線接口、本地控制面板 PSC.2
PS-AMS PSQ includes enhanced electronics with an embedded micro-controller with flash memory that controls and monitors the entire actuator function. Summarizing all functions on a single circuit board makes the actuator extremely compact and safe in operation. The value for money is outstanding.
A PS-AMS PSQ is installed fast due to the automated one-key commissioning.
– Programmable actuator
– Positioner & position feedback integrated
– Automatic commissioning function
– Comprehensive diagnostic functions
– Various options, among others electrical fail-safe unit PSCP, field bus interface, local control panel PSC.2
PS AUTOMATION執行器PS-AMS PSQ系列其他常用型號：
PS AUTOMATION PSQ103/AMS11
PS AUTOMATION PSQ103/AMS12
PS AUTOMATION PSQ203/AMS11
PS AUTOMATION PSQ203/AMS12
PS AUTOMATION PSQ503/AMS12
PS AUTOMATION PSQ703/AMS13
PS AUTOMATION PSQ1003/AMS13
PS AUTOMATION PSQ1503/AMS13
PS AUTOMATION PSQ2003/AMS13
PS AUTOMATION PSQ2803/AMS13
