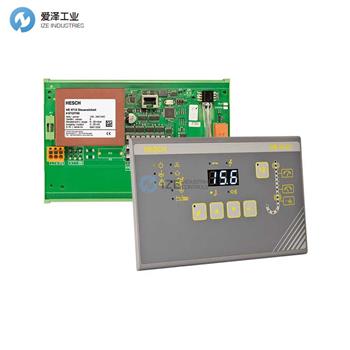

HESCH閥門控制器器HE5712介紹
Technical data | |
HE 5712 | |
Measuring Ranges | 0…35 mbar |
Max. Differential Pressure | Measuring range 0…35 mbar: 160 mbar |
Medium | Air, as well as dry, non-aggressive gases |
Base Accuracy | ± 1 % of full scale |
Temperature Drift | ± 0.05 % / K of full scale |
Hysteresis | ± 0.5 % of full scale |
Application | Solenoid valve control for cleaning industrial filter systems |
Valve Outputs | Max. 8 outputs, 24 V DC |
Supply Voltage | 100–240 VAC / 50 – 60 Hz or 24 VDC ±10% Safety Extra Low Voltage (SELV) |
Power Consumption | 30 VA at 100–240 VAC control Max. 30 W at 24 VDC control |
Pulse Time | 0.01 – 9.99 seconds adjustable |
Pause Time | 1.0 – 999 seconds adjustable |
Display | 7-segment display, 3 digits, 14 mm height, white |
LEDs | 14 LEDs for status indicators, 16 LEDs for differential pressure column |
Buttons | PARA (ESC), UP, DOWN, ENTER, TEST |
Analog Output | 4 – 20 mA, max. permissible burden: 400 Ω |
Digital Inputs | Start, post-cleaning, release |
Relay Output | 1 changeover contact 250 VAC, 5 A as combined operating and fault message |
Interfaces | USB Device, Type B for writing and reading parameters (USB / TTL adapter required) |
Air / Creepage Distances | Pollution degree 2, overvoltage category II |
EMC | Emission: DIN EN 61000-6-4 |
Housing Dimensions | |
Compact housing | 231 × 125 × 90 mm |
Modular | 200 × 122 × 30 mm |
Modular | 192 × 128 × 63 mm |
Connection Set for Compact Housing (Option) | ? 2 × M32 with multi-density insert for 6 cables with 6 mm diameter |
Electrical Connections | Power supply: cross-section rigid/flexible: max. 2.5 mm2, flexible: max. 1.5 mm2 with ferrule Rest: cross-section rigid/flexible: max. 1.5 mm2, flexible: max. 0.75 mm2 with ferrule |
Pneumatic Connections | Pressure measuring line: Bulkhead fitting for ?6 mm hose |
Mounting | |
Compact housing | Wall mounting. Installation position vertical |
Modular | Control panel housing, installation position vertical |
Climatic environmental conditions | |
Storage | -20° – +70°C |
Transport | -40° – +85°C |
Operation | Compact housing |
Relative Humidity | Relative humidity 95%, no condensation allowed, KUF according to DIN 40400 |
常用HESCH閥門控制器型號列舉：
HESCH HE5712
HESCH HE5720
HESCH HE5721
HESCH HE5722
HESCH HE5731
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于HESCH閥門控制器HE系列 示例HE5712的疑問，請隨時與我們溝通，愛澤工業（86-021-31006702）。我們將盡全力解決您的問題。
