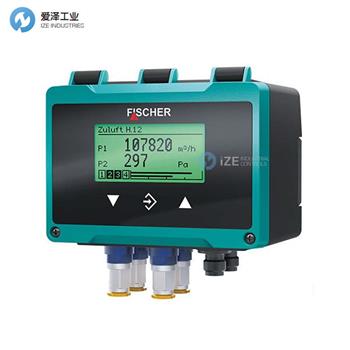

FISCHER差壓變送器DE905300P8P000000000技術參數
Code no. | DE905300P8P000000000 |
Type | DE90 |
Measuring range channel 1: | [53] 0 … 6 mbar |
Measuring range channel 2: | [00] None |
Process connection: | [P8] Nickel-plated brass pneumatic plug-in connector for 8/6 mm hose |
Output signal: | [P] 4 … 20 mA, Switchable, preset at the factory: |
Special functions: | [0] None |
Special features: | [0] None |
000 | |
Approval and housing/lid colour: | [00] None, Anthracite, Green |
Membrane keypad: | [0] FISCHER |
Configuration: | [0] “Standard” configuration, Preset at the factory |
FISCHER差壓變送器DE90系列介紹
? 堅固、耐過壓且免維護
? 配置簡單
? 測量范圍從– 25 Pa 至 25 kPa– 1 mbar 至 250 mbar
? 測量精度高達 0.5%
? 調節比為 4:1
? 可選單通道或雙通道型號，帶 2 個或 4 個可配置開關輸出
? 每個通道可選模擬輸出信號– 0/4 至 20 mA、0/2 至 10 V 或 1 至 5 V– 特性曲線轉換和過程調整
? 多行 LC 顯示屏– 全圖形，帶彩色背光，可直觀顯示操作模式– 多語言純文本菜單
? 數字接口– USB OTG– RS485 Modbus RTU– IO-Lin
? Robust, resistant to overpressure and maintenance-free
? Simple configuration
? Measuring ranges from– 25 Pa to 25 kPa– 1 mbar to 250 mbar
? Measuring accuracy up to 0.5%
? Turn down ratio of 4:1
? Optionally one or two-channel model with 2 or 4 configurable switch outputs
? Optional analogue output signal for each channel– 0/4 to 20 mA, 0/2 to 10 V, or 1 to 5 V– Characteristic curve conversion and adjustment to process
? Multi-line LC display– Fully graphic with colour backlighting for the visualisation of the operating modes– Multilingual plain text menu
? Digital interfaces– USB OTG– RS485 Modbus RTU– IO-Lin
FISCHER差壓變送器DE90系列其他常用型號：
FISCHER DE90B20000P0000
FISCHER DE90B40000P0000
FISCHER DE90C50000P0000
FISCHER DE905900P8P00000
FISCHER DE90R500P8P00000
FISCHER DE90N10041B00000
FISCHER DE905300P8P000000000
FISCHER DIFFERENTIAL PRESSURE TRANSMITTER NEW + ORIGINAL+ ONE YEAR WARRANTY
