BARCONTROL壓力開關MDC系列技術參數
TECHNICAL DATA | |
CONSTRUCTION: | SNAP ACTION MICRO SWITCH SW27 WITH HIGH PRESSURE MEMBRANE |
OPERATING FLUID: | NEUTRAL FLUIDS/GASES |
MECHANICAL INSTALLATION: | OVER FLUID CONNECTION |
MOUNTING POSITION: | ANY |
MAX. SYSTEM PRESSURE: | 200BAR |
REPEATABILITY: | MAX. ±2% OF FULL SCALE AT ROOM TEMPERATURE |
HYSTERESIS: | GUIDE VALUE: 0,4BAR + 5…20% OF SET POINT, ADJUSTABLE |
LIFE CYCLES, MECH.: | > 2X106 |
MAX. SWITCHING FREQUENZY: | ~1HZ |
TEMPERATURE RANGE: | -40…+80°C AS A FUNCTION OF USED ELASTOMERE |
VIBRATION RESISTANCE: | 10G (10 ... 2000HZ) SINUS ACC. TO ISO 16750-3 |
SHOCK RESISTANCE: | 30G, 14MS SHAPED SINUS ACC. TO DIN 40046, T7 |
SWITCHING ELEMENT: | SNAP ACTION MICRO SWITCH WITH SELF CLEANING PINS |
CE-MARK: | ACC. TO EU-STANDARDS: 2014/35/EU (LVD), 2011/65/EU (ROHS) |
PROTECTION CLASS: | IP65 ACC. TO DIN EN 60529; IP67 USING PLUG M12X1 OR CABLE OUTLET |
WEIGHT: | ~0,15KG |
BARCONTROL壓力開關MDC系列介紹
薄膜壓力開關 AF27 – MDC 型：
? 速動微動開關
? 250V / 4A
? 轉換觸點 SPDT
? 彈性膜片
? 調節范圍：1…10BAR
? 最大系統壓力 200BAR
? 出廠時可預設
? 安裝壓力阻尼器 0.33MM
? 緊湊型設計
? 電子連接 DIN EN 175301-803A，包括插座、替代插頭 M12X1 或電纜出口
MEMBRANE PRESSURE SWITCH AF27 – TYPE MDC:
? SNAP ACTION MICRO SWITCH
? 250V / 4A
? CHANGE OVER CONTACT SPDT
? ELASTOMER MEMBRANE
? ADJUSTMENT RANGE: 1…10BAR
? MAX. SYSTEM PRESSURE 200BAR
? PRESET EX WORKS POSSIBLE
? MOUNTED PRESSURE DAMPER 0,33MM
? COMPACT DESIGN
? E-CONNECTION DIN EN 175301-803A INCLUDING SOCKET, ALTERNATIVE PLUG M12X1 OR CABLE OUTLET

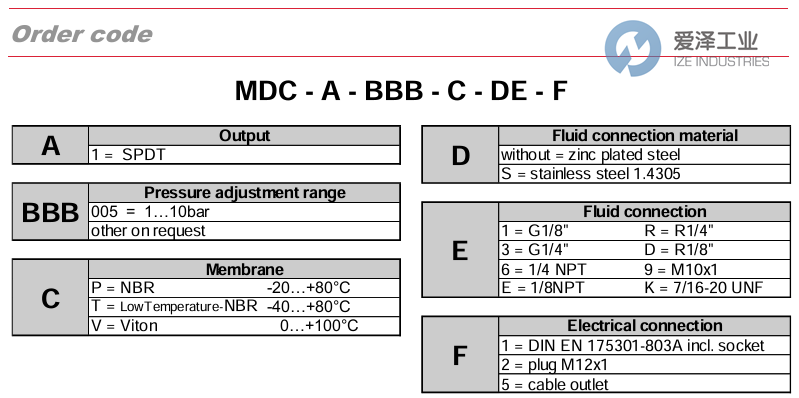

BARCONTROL壓力開關MDC系列選型
BARCONTROL壓力開關MDC系列其他常用型號：
BARCONTROL MDC-1-005-M-3-1
BARCONTROL MDC-1-008-P-ZZ-1-TDB
BARCONTROL MDC-1-001.00-P-1-1-BAR001.00R
BARCONTROL MDC-1-005-P-3-1
BARCONTROL MDC-1-014-P-ZZ-1-TDB
BARCONTROL PRESSURE SWITCH NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于BARCONTROL壓力開關MDC-1-014-P-ZZ-1-TDB的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
IF YOU HAVE ANY QUESTION FOR BARCONTROL PRODUCTS, PLEASE FEEL FREE TO DIAL 0086-21-3100 6702/ SEND REQUEST EMAIL TO SALES@IZE-INDUSTRIES.COM / BROWSE OUR WEBSITE:jjxdch.cn.
BARCONTROL壓力開關MDC系列MDC-1-014-P-ZZ-1-TDB技術參數及選型
