AIRCOM調壓閥R037-01BK技術參數
Part Number | R037-01BK |
Connection | G1/8 |
Supply Pressure Max. [Bar] | 16 |
Pressure Range [Bar] | 0,2...4,0 |
Flow Rate Air [Nl/Min] | 350 |
Flow Rate Water [l/Min] | 5 |
AIRCOM調壓閥R037系列介紹
隔膜微型壓力調節器由塑料制成，設計小巧輕便。
所有與介質接觸的部件均經過 FDA 批準。
應用領域：食品工業和水循環，例如用于透析裝置
介質：壓縮空氣、非腐蝕性氣體、去離子水和其他液體
供給壓力：最大 16 巴
調節：通過帶彈簧鎖的塑料旋鈕
泄壓功能：非泄壓
壓力表端口：不可用
安裝位置：任意
溫度范圍：0 °C 至 50 °C / 32 °F 至 122 °F
閥體：POM 技術聚合物，帶 SST 316 螺紋嵌件，經 FDA 和 WRAS 批準
彈性體：EPDM，帶 SST 316 螺紋嵌件，經 FDA 和 KTW 批準
閥門和 O 形環：Hytrel 和 EPDM，經 FDA 批準
油脂：Klüber，UH184-201

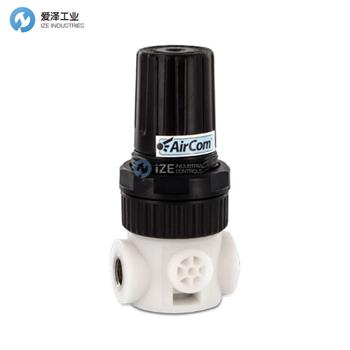

Diaphragm miniature pressure regulator made of plastic and of small and lightweight design.
All parts coming into contact with the medium are approved by the FDA.
Application_area: food industry and water circulation, e.g. for dialysis devices
Media: compressed air, non-corrosive gases, deionized water and other liquids
Supply_pressure: max.16 bar
Adjustment: by plastic knob with snap-lock
Relieving_function: non-relieving
Gauge_port: not available
Mounting_position: any
Temperature_range: 0 °C to 50 °C / 32 °F to 122 °F
Body: POM technopolymer with thread insert of SST 316, approved by FDA and WRAS
Elastomer: EPDM with thread insert of SST 316, approved by FDA and KTW
Valve_and_O-ring: Hytrel and EPDM, FDA-approved
Grease: Klüber, UH184-201

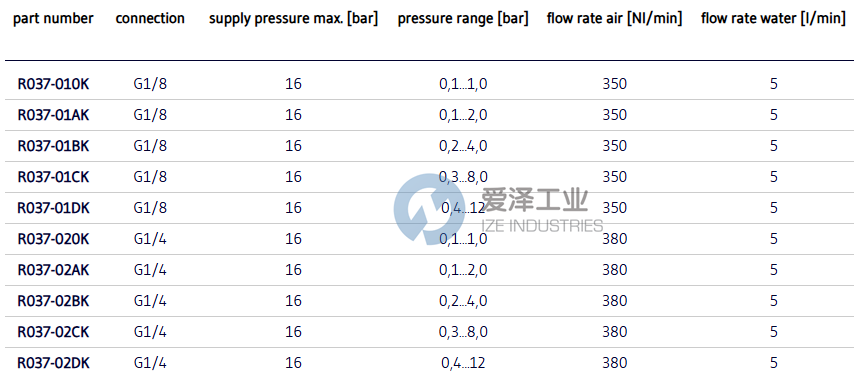

AIRCOM調壓閥R037系列選型
AIRCOM調壓閥R037系列其他常用型號：
AIRCOM R037-010K
AIRCOM R037-01AK
AIRCOM R037-01BK
AIRCOM R037-01CK
AIRCOM R037-01DK
AIRCOM R037-020K
AIRCOM R037-02AK
AIRCOM R037-02BK
AIRCOM R037-02CK
AIRCOM R037-02DK
