CCS差壓開關604D系列技術參數
Specifications | |
Environmental Approvals | IP65, NEMA 4, NEMA 13, NACE, RoHS |
Industry | Industrial |
Instrumentation | Pressure Switch |
Environment | Non-Hazardous |
Certification Agency Approvals | UL, CE, CRN, CCC |
Operating Temperature Range | -40° to 186 °F |
Process Connection Fitting Size | Female 1/4" NPT |
Process Connection Material | Aluminum |
Housing Enclosure | Aluminum |
Electrical Connection | Female 3/4" NPT |
Electrical Switch Type | SPDT |
Voltage Electrical Rating VAC | 0 to 250 VAC, 251 to 480 VAC |
Amperes Electrical Rating | 0.2 to 15 A |
Fixed or Adjustable Set Point | Adjustable |
Presetting | Factory Set, Not Factory Set |
Tagging | Mylar, Stainless Steel |
Accessories | Manifold |
Increasing Pressure Range | 1 to 18 PSID, 6 to 75 PSID |
Decreasing Pressure Range | 0.4 to 17.4 PSID, 2 to 71 PSID |
Pressure Type | Differential |
Media | Oil Based, Non-Oil Based |
Increasing Pressure Ranges | 0 – 1.15 PSI, 1.16 – 2.99 PSI, 3 – 180 PSI |
Decreasing Pressure Ranges | 0 – 1.15 PSI, 1.16 – 173 PSI |
Maximum System Pressure | 400 |
Maximum Proof Pressure | 750 |
Process Connection Seal | O-Ring Sealed Diaphragm |
Diaphragm | Polyimide |
O-ring | Viton |
CCS差壓開關604D系列介紹
604D 系列是通用工業差壓開關。它采用全鋁制成，采用一體式接線盒和開關設計，易于設定點調節。它還可以輕松安裝到艙壁上，并通過 NEMA 4 和 IP65 等級的 UL 認證。它采用 Dual Snap? 碟形彈簧技術，具有較高的抗振動和抗沖擊能力。應用包括非危險環境，例如：
?發電
?軌道車
?流體管理
? 制造工藝
?公用事業、水處理和廢物
?化學品精煉和加工
?重型車輛
?安全系統

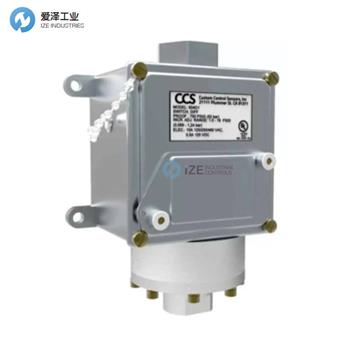

The 604D Series is a general purpose, industrial differential pressure switch. Made with all aluminum, it is constructed with an integral terminal box and switch design and easy set point adjustment. It is also easily mounted to bulkheads and UL certified with NEMA 4 and IP65 rating. It has high vibration and shock resistance utilizing Dual Snap? disc spring technology. Applications include nonhazardous environments such as:
? Power Generation
? Rail Car
? Fluid Management
? Manufacturing Process
? Utilities, Water Treatment and Waste
? Chemical Refining and Processing
? Heavy Vehicles
? Safety Systems
CCS差壓開關604D系列其他常用型號：
CCS 604D1
CCS 604D2
CCS 604DZM
CCS 604DM1
CCS 604DM2
