GCE DRUVA壓力調節器FMD320系列技術參數
TECHNICAL DATA | |
Body: | Stainless steel 316L (1.4404) specially cleaned |
Seat seals: | PCTFE |
Body seals: | PCTFE (Stainless steel), |
Diaphragm: | Stainless steel |
Leakage rate: | <1×10-9 mbar l/s Helium (outboard) |
Relief valve seat seals: | SS: FKM, (EPDM, FFKM), |
Pressure gauge range: | 0 to 25 bar (0-365 psi), |
Working temperature: | -25 °C to +70°C/-13 °F to 158°F |
Weight: | approx. 1.5 kg (Type-14), 1.8 kg (Type-16/18) |
Cylinder connection: | according to gas type |
Outlet: | NPT 1/4"f, optional tube fitting |

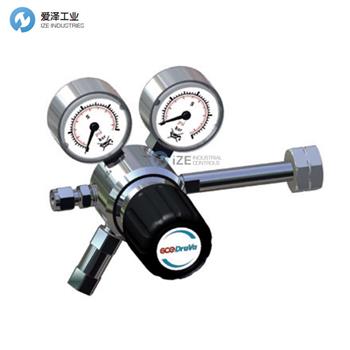

GCE DRUVA壓力調節器FMD320系列介紹
這些壓力調節器由氣缸連接件、壓力調節器、入口和出口壓力表、隔膜截止閥（-16 型）、調節閥（-18 型）、安全閥、出口管接頭組成。
FMD 320-14 是基本型號。 FMD 320-16 允許關閉氣流，同時保持壓力調節器設置，F(xiàn)MD 320-18 上的調節閥可以精細分配氣流。
? 隔膜閥（FMD 320-16，帶 90° 截止功能）
? 帶不銹鋼隔膜的壓力調節器
? ATEX 符合調節旋鈕
? 安全型儀表符合 DIN EN 837
? 對于惰性、反應性和氧化性氣體和混合物，不含乙炔
? 純度上限 5.0
These pressure regulators consist of cylinder connections, pressure regulator, inlet- and outlet gauges, diaphragm shut-off valve (Type -16) regulating valve (Type -18), relief valve, tube fitting on outlet..
The FMD 320-14 is the base model. The FMD 320-16 permits shutting-off of the gas flow while maintaining the pressure regulator settings, the regulating valve on the FMD 320-18 enables a fine apportioning of the gas flow.
? Diaphragm valve (FMD 320-16 with 90° shut-off function)
? Pressure regulator with stainless steel diaphragm
? ATEX conform adjustment knob
? Gauge in safety version accordance with DIN EN 837
? For inert, reactive and oxidizing gases and mixtures, no acetylene
? Purity max. 5.0

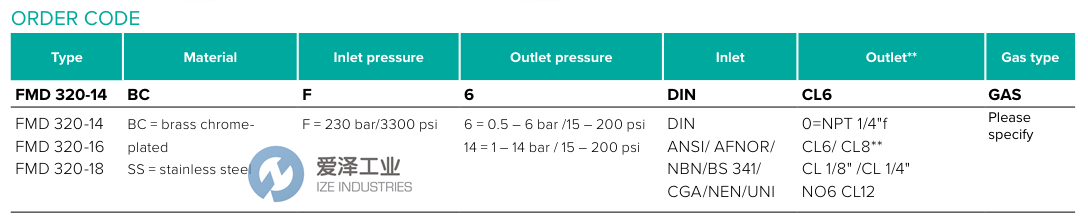

GCE DRUVA壓力調節器FMD320系列選型
GCE DRUVA壓力調節器FMD系列其他常用型號：
GCE DRUVA FMD320-14 SS F 14
GCE DRUVA FMD 320-16
GCE DRUVA FMD 320-18
GCE DRUVA FMD 322-14
GCE DRUVA FMD 322-16
GCE DRUVA FMD 322-18
GCE DRUVA CYLINDER PRESSURE REGULATORS NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于GCE DRUVA壓力調節器FMD320-14 SS F 14的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for GCE products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
GCE DRUVA壓力調節器FMD320系列FMD320-14 SS F 14技術參數及選型
