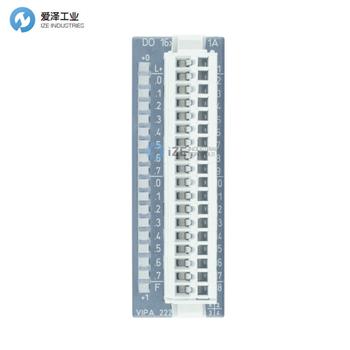

Order no.

222-1BH10

Current consumption/power loss

Current consumption from backplane bus

120 mA

Power loss

3.5 W

Technical data digital outputs

Number of outputs

16

Cable length, shielded

1000 m

Cable length, unshielded

600 m

Rated load voltage

DC 20.4...28.8 V

Current consumption from load voltage L+ (without load)

10 mA

Total current per group, horizontal configuration, 40°C

10 A

Total current per group, horizontal configuration, 60°C

10 A

Total current per group, vertical configuration

10 A

Output current at signal "1", rated value

1 A

Signal logic output

Sourcing output

Output delay of "0" to "1"

150 μs

Output delay of "1" to "0"

100 μs

Lamp load

5 W

Parallel switching of outputs for redundant control of a load

not possible

Parallel switching of outputs for increased power

not possible

Actuation of digital input

yes

Switching frequency with resistive load

max. 1000 Hz

Switching frequency with inductive load

max. 0.5 Hz

Switching frequency on lamp load

max. 10 Hz

Internal limitation of inductive shut-off voltage

L+ (-52 V)

Short-circuit protection of output

yes, electronic

Trigger level

1.5 A

Output data size

2 Byte

Housing

Material

PPE / PA 6.6

Mounting

Profile rail 35 mm

Mechanical data

Dimensions (WxHxD)

25.4 mm x 76 mm x 88 mm

Net weight

90 g

Environmental conditions

Operating temperature

0 °C to 60 °C

Storage temperature

-25 °C to 70 °C

Certifications

UL certification

yes
