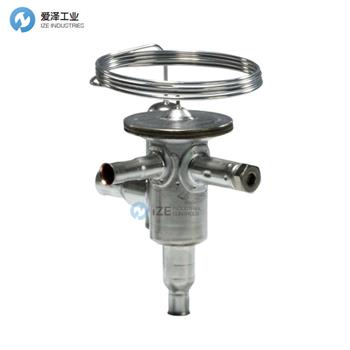

DANFOSS調節閥068U2950技術參數
Product details | |
Net weight | 0.142 Kg |
Volume | 0.5 Liter |
Body material | Stainless steel |
Capillary tube length [in] | 31 in |
Capillary tube length [mm] | 800 mm |
Connection material | Bi-metal: Steel/copper |
Direction | Angleway |
EU RoHS compliance | Yes with exemptions |
EU RoHS exemption clause | 6(a), 6(c) |
Flow direction | Single-flow |
Flow direction indicator | Laser engraved 1-way arrow |
Fluid Group | 2 |
In scope of WEEE and contain batteries | No |
Inlet connection type | Solder, ODF |
Inlet size [mm] | 10 mm |
Max. Working Pressure [bar] | 34 bar |
Max. Working Pressure [psig] | 500 psig |
Orifice capacities [kW] | 1.8 kW |
Orifice capacities [TR] | 0.5 TR |
Orifice size | 9 |
Outlet connection type | Solder, ODF |
Outlet size [mm] | 12 mm |
Pressure equalization | Internally equalized |
Product Name Description | Hot gas bypass regulator |
Refrigerants | R134a/R513A |
Static Superheat (SS) [°C] | 2 °C |
Static Superheat (SS) [°F] | 3.6 °F |
Superheat setting | Adjustable |
Temperature range [°C] [max] | 10 °C |
Temperature range [°C] [min] | -1 °C |
Temperature range [°F] [max] | 50 °F |
Temperature range [°F] [min] | 30 °F |
Type | TUH |
DANFOSS調節閥068U2950產品介紹
入口尺寸 [mm]: 10.00, 入口連接類型: 焊接、ODF, 出口尺寸 [mm]: 12.00, 出口連接類型: 焊接、ODF, 溫度范圍 [°C]: -1 - 10, 孔口容量 [kW]: 1.80、壓力均衡：內部均衡
Inlet size [mm]: 10.00, Inlet connection type: Solder, ODF, Outlet size [mm]: 12.00, Outlet connection type: Solder, ODF, Temperature range [°C]: -1 - 10, Orifice capacities [kW]: 1.80, Pressure equalization: Internally equalized
DANFOSS調節閥TUH系列其他常用型號：
DANFOSS 068U2950
DANFOSS 068U2951
DANFOSS 068U2953
DANFOSS 068U2954
DANFOSS 068U2956
DANFOSS 068U2958
DANFOSS 068U2959
DANFOSS 068U2960
DANFOSS 068U2961
DANFOSS 068U2962
DANFOSS 068U2969
DANFOSS 068U2970
DANFOSS 068U3746
DANFOSS 068U3747
DANFOSS 068U3748
DANFOSS 068U3749
DANFOSS 068U3750
DANFOSS 068U3751
DANFOSS 068U4528
DANFOSS 068U4529
DANFOSS 068U4530
