EI電磁閥999291產品介紹
579-24:10 – 100 lb/min (4.5 – 45 kg/min)
579-24 流量:0-45kg/min,按照CW23鋼絲切力(0.6mm)設置,配控制電源線
EI電磁閥999291產品介紹
24 Vdc
±5%滿量程精度(可根據要求提供更高精度)
內置流量傳感器
常閉
沒有移動部件,低成本維護操作
符合SAE AMS 2430和2432規格
符合CE標準
適用于噴丸強化和噴砂清理應用
MagnaValve?是一款常閉電磁閥,用于調節噴丸機中鋼丸和切割金屬絲的流量。 MagnaValve內置的傳感器可測量流量,并與FC-24控制器一起提供準確和可重復的流量。 MagnaValve可以針對各種介質類型和尺寸進行工廠校準。
MagnaValve的結構包括一個強大而穩定的用于常閉操作的稀土永磁體和一個用于控制射流流量的電磁體。當MagnaValve未通電時,永磁鐵會停止所有流量。在施加電力的情況下,磁場被中和并且允許注射流過閥。如果電源由于某種原因而中斷,閥內的永久磁鐵會牢固地保持閉合。
MagnaValve為噴丸強化和噴丸清理應用提供可靠,重復和一致的介質流量。 MagnaValve可以很容易地記錄流量,并建立或重復一個良好的設置。該閥門符合SAE AMS 2430,AMS 2432和其他航空航天和商業規范的要求。
隨著運輸,醫療和許多其他制造業應用的需求不斷增長,金屬部件的強度,安全性和輕量化,EI繼續成為行業的先鋒,不斷探索新的增長途徑,開發激動人心的金屬表面領域的產品和服務治療。
MagnaValve Features
24 Vdc
±5% full-scale accuracy (higher accuracy available upon request)
Built-in flow rate sensor
Normally closed
No moving parts for low-maintenance operation
Meets SAE AMS 2430 and 2432 specifications
CE compliant
Suitable for shot peening and blast cleaning applications

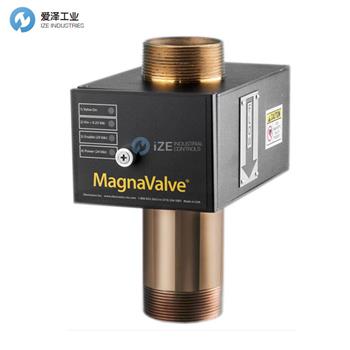

The MagnaValve? is a normally closed magnetic valve that regulates the flow of steel shot and cut wire media in air blast machines. The MagnaValve’s built-in sensor measures flow rate and, together with the FC-24 Controller (sold separately), provides accurate and repeatable flow rates. The MagnaValve can be factory calibrated for various media types and sizes.
The MagnaValve’s construction includes a strong and stable rare earth permanent magnet for normally closed operation and an electromagnet for controlling shot flow rates. When no power is applied to the MagnaValve, the permanent magnet stops all flow. With power applied, the magnetic field is neutralized and shot is allowed to flow through the valve. If the power is interrupted for any reason, the permanent magnet in the valve securely holds the shot. The valve is factory calibrated and results are supplied upon request.
The MagnaValve provides reliable, repetitive, and consistent media flow rates for shot peening and blast cleaning applications. The MagnaValve makes it easy to document flow rate and establish or repeat a good set-up. The valve meets the requirements of SAE AMS 2430, AMS 2432 and other aerospace and commercial specifications.
EI電磁閥備件型號:
EI 576-24
EI 577-24
EI 578-24
EI 579-24
EI 580-24
EI 590-24
愛澤工業成立于2010年,定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣,液壓以及氣動解決方案的合作伙伴,我們利用我們的全球協作團隊,為客戶提供先進解決方案,市場知識以及相關增值服務來幫助優化客戶的工作效率,提高可靠性和安全性,致力于成為工業產品和解決方案的優質渠道。
如果有任何關于EI電磁閥999291的疑問,請隨時與我們聯系(021-31006702)。我們將盡全力解決您的問題。
If you have any question, please feel free to dial 0086-21-3100 6702 or browse our website: jjxdch.cn.
