MAXCESS執行器GMA系列技術參數
GENERAL SPECIFICATIONS | |
Power Supply | 24 VDC (±25%) Current 7.3 A, max |
Certifications | UL61010, CE, CAN/CSA-C22.2, |
Temperature Range | 0 - 50°C |
Stroke | 50 mm – 305 mm (approx. 2 inches to 12 inches) |
Mounting Options | Rod End, Clevis, Flange, and Rectangular |
Gearing Ratio | 1:1 to 1:8 |
Maximum Motor RPM | 1560 |
Maximum Shiftable Load | 3,417 Kg 7,517 lbs) |
Maximum Design Thrust | 2,005 N (451 lbs) |
Maximum Shifting Speed | 52 mm/sec (2.04 inches/sec) |
MAXCESS執行器GMA系列介紹

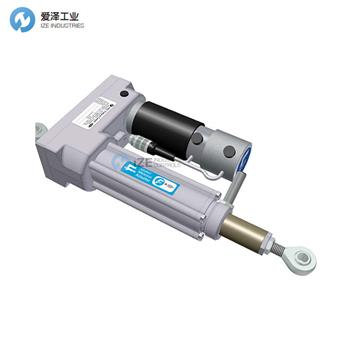

GMA-1 是 Fife 的一款輕型機電執行器，用于放卷/收卷支架、旋轉框架和轉桿組件，但也可用作分切系統的組件。GMA-1 提供多種安裝選項，具有高度的靈活性，以滿足不同的要求。機械設計確保低摩擦、有效且精確的操作，并防止行程末端出現典型的支撐現象。當由 Fife 信號放大器驅動時，不需要限位開關。因此，不需要持續維護。
? MAX靜推力約 2.500N
? 滾珠絲杠和螺母設計可實現低摩擦、高效運行
? 清潔、電子化操作
? 耐用的結構確保連續工作的可靠性
? 不粘行程末端設計
? 無需限位開關
? 兼容所有 Fife 自動引導和定位設備
? 根據客戶的要求調整大小和配置
The GMA-1 is a light duty electromechanical actuator from Fife, for unwind / rewind stands, rotating frames and turn bar assemblies but can also be used as a component of slitting systems. The GMA-1 provides a variety of mounting options which offers a high degree of flexibility in order to meet different requirements. The mechanical design ensures low friction, effective and precise operation and prevents the typical bracing at the stroke end. Limit Switches are not necessary when driven by Fife signal amplifiers. Therefore, no ongoing maintenance is required.
? Maximum static thrust of ca. 2.500N
? Ball screw and nut design for low-friction, efficient operation
? Clean, electronic operation
? Durable construction for continuous duty reliability
? Non-sticking end of stroke design
? No limit switches required
? Compatible with all Fife automated guiding and positioning equipment
? Sized and configured to your requirements
MAXCESS執行器GMA系列其他常用型號：
MAXCESS GMA-1-5-050.1-ISCT-Z12
MAXCESS GMA-1-3-076.1-KR
MAXCESS GMA-1-3-127.1-ISCT-KR
MAXCESS GMA-1-6-152.1-ISCT-KR
MAXCESS GMA-1-11-100.1-ISCT-Z12
MAXCESS GMA-D3-16-127.1-ISCT-Z12
MAXCESS GMA-1-8
MAXCESS GMA-3-3
MAXCESS GMA-3-6
MAXCESS GMA-3-8
MAXCESS ACTUATORS NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于MAXCESS執行器GMA-1-6-152.1-ISCT-KR的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for MAXCESS products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
MAXCESS執行器GMA-1-6-152.1-ISCT-KR技術參數及介紹
