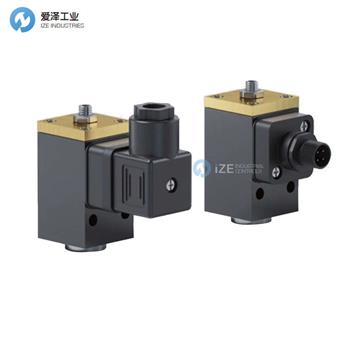

LAYHER壓力開關480006系列技術參數
TECHNICAL DATA | |
Order no. | 480006 |
Pressure setting range | 0,3 – 6bar |
Tolerance | ± 0,2bar |
Working pressure max. | 6bar |
Overpressure limit max.(static) | 10bar |
Design | Spring-loaded diaphragm |
Diaphragm | NBR, specialdesign VITON,EPDM,Steel |
Manner of fastening | Forale thread or by 2 through holes in the case |
Fitting thread | G 1/4”or flange-mounted |
Mounting position | Any |
Ambient temperature | -25 °C to + 85 °C,higher temperatures on B13demand |
Medium | Air,others on demand |
Adjustability | Under pressure |
Switch back difference | 15%– 25% |
Mechanical life | 106 |
Material | Aluminium, black anodizal |
Weight approx. | 175g |
Switching element | Microswitch- silver-plated contacts / special gold-plated contacts |
Reference voltage | 250 V (PG9), 42 V (Rundstecker M12x1) |
Reference frequency | Not over 100 Hz |
Switching frequency max. | 200/min. |
Electrical connection | Connector PG9 DIN EN 175301-803,optionally with round plug M12x1 |
Protective system | IP65, terminale IP00 DIN 40050 |

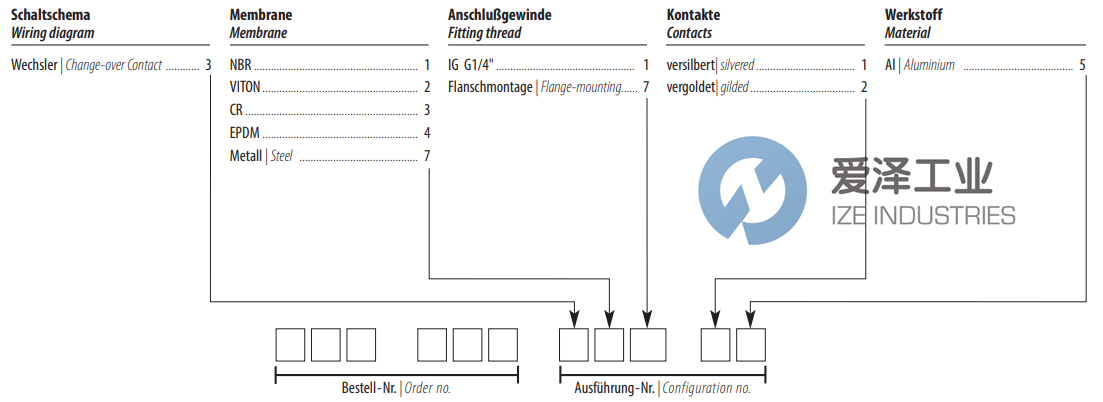

LAYHER壓力開關480系列選型
LAYHER壓力開關480系列其他常用型號：
LAYHER 48001637115
LAYHER 48000631115
LAYHER 48000637115
LAYHER PRESSURE SWITCH NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于LAYHER壓力開關48000637115的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for LAYHER products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
LAYHER壓力開關480系列48000637115技術參數及選型
