SPARTAN電磁閥3505-01-4233技術參數
3505 - 0 | |
Seal Material | 1 - FKM |
42 | |
Port Size Orifice Cv | 3 - 1/2" NPT 12.5mm 2.45 |
Coil Options | 3 - 24 VDC |
SPARTAN電磁閥3505系列介紹
Series 3505

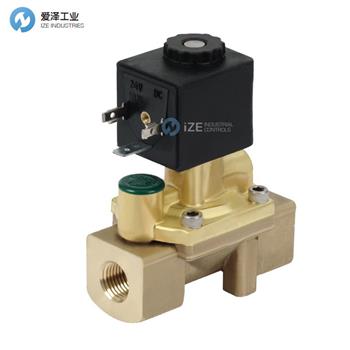

The Spartan Scientific Series 3505 is a 2-Way, 2-Position, internally piloted solenoid valve for the control of air, emulsion, inert gases and water. The valve features an all brass body and a full flow 1/2” orifice while maintaining a 1.5 minimum pressure differential. The design allows for a tight seal on the orifice at 0 psi. Available in 1/4”, 3/8” and 1/2” NPT, the 3505 can handle pressures to 230 psi. The encapsulated coil construction ensures that the valve functions well under long periods of activation (100% duty), as well as providing a high degree of environmental protection (NEMA 4). The inner valve functions as a direct assist using a flat diaphragm and orifice plate. Pressure differentials shift the valve to full open or full closed. A push, non-locking manual override is standard.
3505系列
Spartan Scientific 3505 系列是一款2通、2位、內部先導電磁閥,用于控制空氣、乳化液、惰性氣體和水。該閥門采用全黃銅閥體和全流量 1/2 英寸孔口,同時保持1.5的最小壓差。 該設計可在0 psi壓力下實現孔口的緊密密封。3505 有 1/4”、3/8” 和 1/2” NPT 可供選擇,可處理高達 230 psi 的壓力。封裝線圈結構確保閥門在長時間激活(100% 負載)下正常工作,并提供高度的環境保護 (NEMA 4)。 內部閥門使用扁平隔膜和孔板起到直接輔助作用。 壓差將閥門切換至全開或全關。標準配置為推動式非鎖定手動超控裝置。
SPARTAN電磁閥其他常用型號:
SPARTAN 3505-01-4233
SPARTAN 3505-01-432Z
SPARTAN 3505-01-4213
SPARTAN 3505-01-4237
SPARTAN 3505-01-4217
SPARTAN SOLENOID VALVES NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年,定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣,液壓以及氣動解決方案的合作伙伴,我們利用我們的全球協作團隊,為客戶提供先進解決方案,市場知識以及相關增值服務來幫助優化客戶的工作效率,提高可靠性和安全性,致力于成為工業產品和解決方案的優質渠道。
如果有任何關于SPARTAN電磁閥3505-01-4233的疑問,請隨時與我們溝通(021-31006702)。我們將盡全力解決您的問題。
If you have any question for SPARTAN products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
