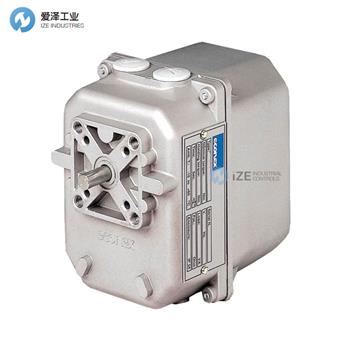

ECONEX電動執行器AB1C/A2002-SE5/78技術參數
AB1 = Rotary actuator | |
Supply voltage | C = 230V AC + 6% - 10% / 50 - 60 Hz |
Rotation time at 90° at 50° Hz Nominal moment Nm Static moment Nm | 2 = 30 s 3 2,5 |
Auxiliary feedback potentiometer (not available with built-in transformer) | 00 = None |
Auxiliary micros | 2 = no. 2 (standard) |
Accessories | S = Local station Auto/Man |
Segnale di comando | E5 = Ingresso 4÷20 mA |
ECONEX電動執行器AB1, AB1... E系列介紹
The AB1 series rotary actuators are used in civil and industrial combustion systems and are suitable for controlling and regulating modulating valves, butterfly valves, dampers and other fluid regulating devices requiring control of an angular position within 90° or 180°. The single-pole motor is of the bidirectional type, with high starting and holding torque for three-position control in the electric version or with analogue proportional control signal with voltage or current variation in the electronic version. The AB1 series actuators are CE-marked and EMC-compatible.
AB1系列旋轉執行機構用于民用和工業燃燒系統，適用于控制和調節調節閥、蝶閥、風閥以及其他需要控制角度位置在90°或180°以內的流體調節裝置。 單極電機為雙向型，電動型具有啟動性和保持扭矩，可進行三位控制，電子型采用電壓或電流變化的模擬比例控制信號。 AB1 系列執行器具有 CE 標志并符合 EMC 要求。
ECONEX電動執行器AB1, AB1... E系列其他常用型號：
ECONEX AB1C/A2002-SE5/78
ECONEX AB1A1002-SOE5
ECONEX AB1A2002-SE5
ECONEX AB1B3150S
ECONEX Gear Motor NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于ECONEX電動執行器AB1C/A2002-SE5/78的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for ECONEX products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
