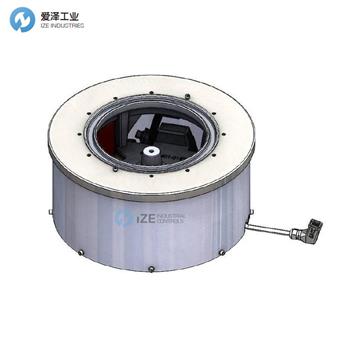

RNA控制單元SRC-B250-2R技術參數
Type | SRC B 250-2* |
|
h = Drive unit height/Top casting | 218 | |
」= Drive unit diameter | 290 | |
K = Pitch between mountings/no. of bores | 220/3 | |
L = Thread dimensions | M8 | |
M = Bowl fxing | M6 8x45° | |
N = Shoulder diameter | 165 | |
G = Bolt circle (Bowl fastening) | 186 | |
Drive unit weight [kg] | 40 | |
Rating in amps [A] | 2,6 | |
Length of connection cable* [m] | 2,5 | |
Vibration frequency | 100Hz 6000 min | |
Nominal voltages (avalable onrequest with 220V) | 200V 50Hz | |
Execution standard | CE | |
Protective casing | IP54 | |
Protective casing (special painting on request) | Steel, paintedRAL7035 ightgrey |
RNA控制單元其他常用型號：
RNA SRC-B250-2R
RNA SRC-N 63-2
RNA SRC-N 100-2
RNA SRC-N 160-2
RNA SRC-N 200-2
RNA SRC-B 200-2
RNA SRC-N 250-2
RNA SRC-B 250-2
RNA SRC-N 400-2
RNA SRHL 400-2
RNA CONTROLLER NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于RNA控制單元SRC-B250-2R的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for RNA products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.

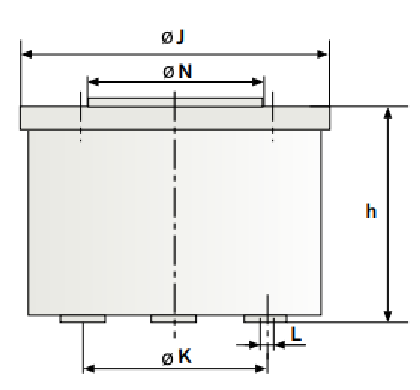

RNA控制單元SRC-B250-2R技術參數及尺寸
