OLIVER VALVE閥MONO/DBB/S/10-300RF/50F/25F-PP技術參數
Code | MONO/DBB/S/10-300RF/50F/25F-PP |
Model / Type | Mono – mono flange |
Model | DBB – double block and bleed |
Material Selection | S – Stainless steel ASTM A182 F316 |
Flange details | |
Flange size | 10 – 1” |
Flange class | 300 – 300lb |
Flange type | RF – Spiral finish raised face |
OLIVER VALVE閥MONO系列介紹
量塊單法蘭閥與預裝的主隔離閥配合使用。 它們提供緊湊型儀表雙關斷和排放閥。 該系列還提供單阻斷和單阻斷和排放配置。
? 雙截止和排放閥
? 截止閥和泄放閥
? 單截止閥
? 主要分離株 – 針狀圖案
? 二次隔離 – 針狀圖案
? 排放閥 – 針型
? 水平和垂直儀器連接
? 閥門設計用于與 ANSI B16.5 法蘭連接

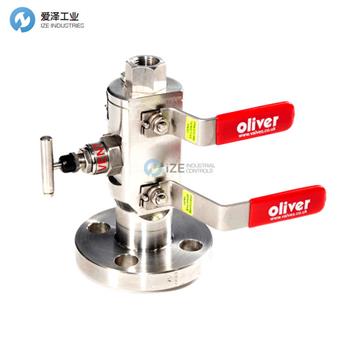

Gauge block monoflange valves work in conjunction with a pre-installed primary isolate valve. They provide compact instrument double block and bleed valving. This range is also available in both single block and single block and bleed configurations.
? Double Block and Bleed valves
? Block and Bleed valves
? Single Block Valve
? Primary isolate – Needle pattern
? Secondary isolate – Needle pattern
? Bleed valve – Needle pattern
? Horizontal and vertical instrument connections
? Valves designed to connect with ANSI B16.5 flanges

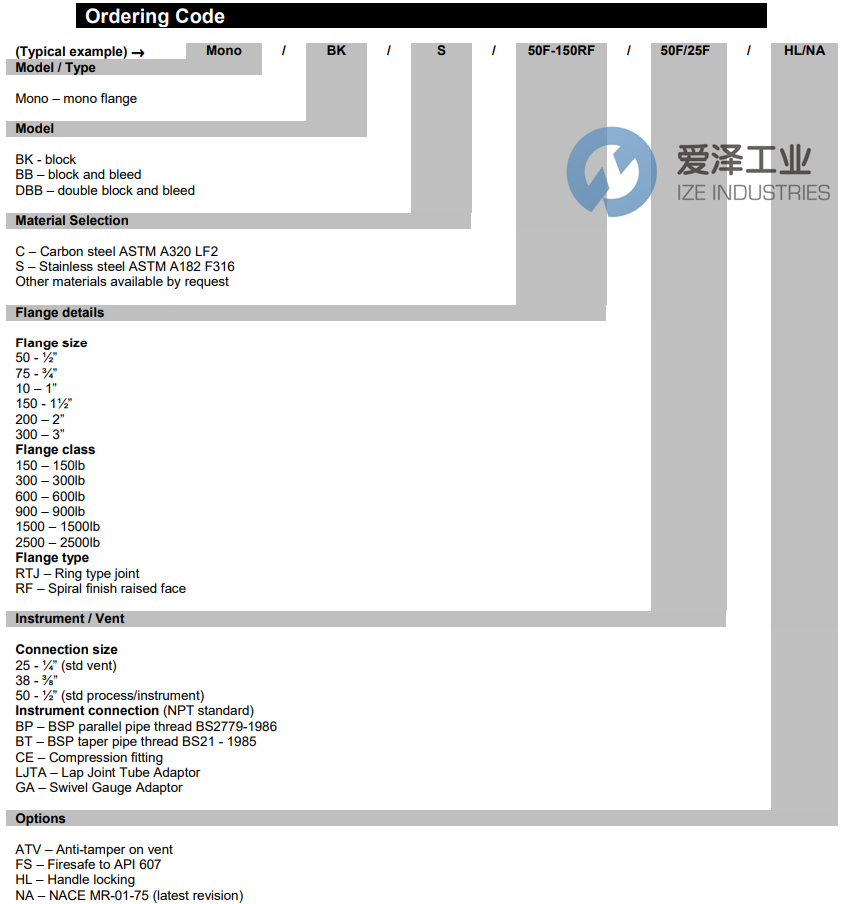

OLIVER VALVE閥MONO系列選型
OLIVER VALVE閥MONO系列其他常用型號：
OLIVER VALVE MONO/DBB/F55/1.812-15000 API
OLIVER VALVE MONO/DBB/S/10-300RF/50F/25F-PP
OLIVER VALVE MONO/DBB/S/50F/150RF/50F/25F/HL/NA
OLIVER VALVE VALVE NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于OLIVER VALVE閥MONO/DBB/S/10-300RF/50F/25F-PP的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for OLIVER VALVE products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
OLIVER VALVE閥MONO系列MONO/DBB/S/10-300RF/50F/25F-PP技術參數及選型
