HELMHOLZ通信模塊700-600-CAN12技術參數
CAN 300 PRO | |
General information | |
Order number | 700-600-CAN12 |
Article name | CAN 300 PRO |
Scope of delivery | CAN 300 PRO |
Dimensions (DxWxH) | 116 x 40 x 125 mm |
Weight | Approx. 280 g |
Status indicator | 6 LEDs |
Voltage supply | +5 V DC via backplane bus |
CAN interface | |
Number | 1 |
Type | ISO/DIN 11898-2 CAN High-speed physical layer |
Transmission rate | 10 kbps ... 1 Mbps |
Protocol | CAN 2.0A (11 bit)/CAN 2.0B (29 bit) Layer 2 |
DeviceNet slave (upon request) | |
Connection | Connector, SUB-D, 9-pin |
Configuration interface | |
Type | USB 1.1 |
Connection | USB B socket |
Current draw | |
Current draw typical | 160 mA |
Current draw maximal | 190 mA |
Ambient conditions | |
Ambient temperature | -25 °C … +60°C |
Transport and storage temperature | -25 °C … +75 °C |
Pollution degree | 2 |
Protection rating | IP20 |
Approvals | CE |
HELMHOLZ通信模塊700-600-CAN12產品介紹
Systeme Helmholz GmbH 的 CAN 300 PRO 模塊用于西門子的 S7-300*，允許將 CAN 站與可編程控制器連接。該模塊可以安裝在中央控制器或擴展單元中。CAN 300 PRO 模塊支持 CAN 2.0A（11 位）和 CAN 2.0B（29 位）幀，波特率可自由選擇 10 kbps 至 1 Mbps。
CAN 300 PRO 模塊可以在第 2 層操作模式下發送和接收 CAN 幀。CANopen? 從站的數據可在 PLC 中以 CANopen? 主站操作模式作為過程映像進行處理。也可以作為 CANopen? 從站應用。提供了標準應用的應用示例，包括使用 CANopen? 進行電機控制。還提供 SAE J1939 協議的數據處理塊。
CAN 300 PRO 模塊包含 16 個可自由設置的定時器。每個定時器都可以觸發可自由編程的 CAN 報文。這樣，使用 CAN 300 PRO 模塊就可以輕松實現驅動和伺服系統中常用的同步協議。
撥碼開關設置波特率和站地址，方便調試?？蛇x的微型存儲卡可存儲項目，以便在維修期間快速更換參數或模塊。
6個LED指示模塊的工作狀態。USB 接口可用于診斷和參數化任務。CAN 300 PRO 還可在 -25 °C 至 +60 °C 的擴展環境溫度范圍內工作，隨附 USB 電纜。
特性
? 第 2 層、11 位和 29 位 (CAN 2.0 A/B)
? 模塊上的 CANopen? 主站
? 用于地址 + 波特率的 DIP 開關
? 用于保存項目的微型存儲卡（可選）
? 用于參數設置和診斷的 USB 接口
? 廣泛的 CAN 總線診斷
? 也可用作 CANopen? 從站
? 擴展的環境溫度范圍

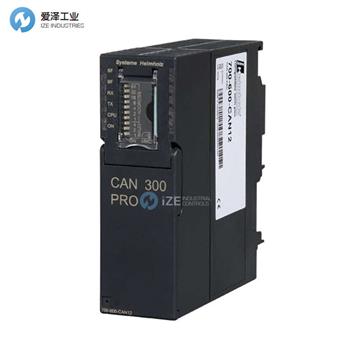

The CAN 300 PRO module of Systeme Helmholz GmbH for use in an S7-300* from Siemens permits connection of CAN stations with the programmable controller. The module can be slotted either in the central controller or in the expansion unit. The CAN 300 PRO module supports CAN 2.0A (11 Bit) and CAN 2.0B (29 Bit) frames with a freely selectable baud rate of 10 kbps to 1 Mbps.
The CAN 300 PRO module can send and receive CAN frames in Layer 2 operating mode. The data of the CANopen? slaves can be processed as a process image in CANopen? Master operating mode in the PLC. Applications as a CANopen? Slave is also possible. Application examples are provided for standard applications including motor control with CANopen?. Data handling blocks for the SAE J1939 protocol are also available.
The CAN 300 PRO module contains 16 freely settable timers. Each timer can trigger a freely programmable CAN telegram. That way, it is easy to implement the synchronous protocols in common use in drive and servo systems using the CAN 300 PRO module.
The DIP switch for setting the baud rate and the station address facilitate commissioning. An optional micro memory card stores the project so that the parameterization or the module is quickly replaced during servicing.
6 LEDs indicate the operating status of the module. A USB interface is available for diagnostics and parameterization tasks. The CAN 300 PRO also works in the extended ambient temperature range of -25 °C to +60 °C.A USB cable is included.
Features
? Layer 2, 11 Bit and 29 Bit (CAN 2.0 A/B)
? CANopen? Master on the module
? DIP switch for adress + baud rate
? Micro Memory Card for saving a project (optional)
? USB Interface for parameterisation and diagnostics
? Extensive CAN-Bus diagnostics
? Can also be used as a CANopen? slave
? Extended ambient temperature range
