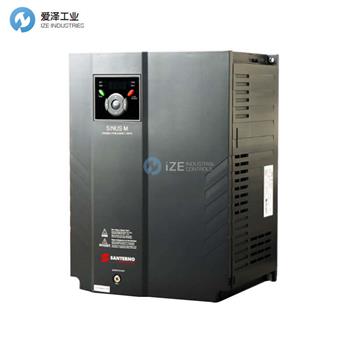

ELETTRONICA SANTERNO驅動器SINUS M 0020 4T BA2K2技術參數
Max capacity Motor power 380-415Vac | [HP] 20 |
Max capacity Motor power 440-460Vac | [HP] 20 |
Output ratings | |
Capacity [kVA] | 22.9 |
FLA [A] | 30 |
Max Frequency | 400 [Hz] |
Max Voltage | 3Φ 380 ~ 480V |
Input ratings | |
Rated Voltage | 3Φ 380 ~ 480 VAC (+10%, –15%) |
Rated Frequency | 50 ~ 60 [Hz] (±5%) |
Cooling method | N/C |
Weight [kg] | 9 |
ELETTRONICA SANTERNO驅動器SINUS M系列介紹
Sinus M 系列驅動器具有兩種適用于三相異步電機的速度控制模式。這些控制模式可供用戶選擇，并確保每個特定工業應用在精度和節能方面達到最佳性能。
主要特點
– 鍵盤遠程套件
– 用于端子板的 NEMA1 套件
– 帶 +24Vdc 線圈的 N.1 外部繼電器
– 帶Modbus/Profibus DP協議轉換板的外部通訊套件?？砂葱杼峁┢渌麉f(xié)議：CANopen、CC-Link、Modbus/TCP、Profinet、Lonworks 等。
– 具有比集成濾波器更高級別的附加 EMC 濾波器
– 三相輸入電感
– 直流輸入電感
– 三相輸出電感（DU/DT 濾波器），建議用于長度超過 100m 的電纜路徑< /span>– 輸出鐵氧體
– 制動電阻
The drives of the Sinus M series come with two speed control modes for three-phase asynchronous motors. Those control modes are user-selectable and ensure optimum performance in terms of accuracy and energy saving for each specific industrial application.
Main features
– Keypad remoting kit
– NEMA1 kit for the terminal board
– N.1 External relay with +24Vdc coil
– External comms kit with Modbus/Profibus DP protocol conversion board. Additional protocols available on demand: CANopen, CC-Link, Modbus/TCP, Profinet, Lonworks, etc.
– Additional EMC Filter featuring higher class than the integrated filter
– Three-phase input inductors
– DC Input inductors
– Three-phase output inductors (DU/DT filters), recommended for cable paths longer than 100m
– Braking resistor
– Output ferrites
ELETTRONICA SANTERNO驅動器SINUS M系列其他常用型號：
ELETTRONICA SANTERNO SINUS M 0001 4T BA2K2
ELETTRONICA SANTERNO SINUS M 0002 4T BA2K2
ELETTRONICA SANTERNO SINUS M 0003 4T BA2K2
ELETTRONICA SANTERNO SINUS M 0005 4T BA2K2
ELETTRONICA SANTERNO SINUS M 0007 4T BA2K2
ELETTRONICA SANTERNO SINUS M 0011 4T BA2K2
ELETTRONICA SANTERNO SINUS M 0014 4T BA2K2
ELETTRONICA SANTERNO SINUS M 0017 4T BA2K2
ELETTRONICA SANTERNO SINUS M 0020 4T BA2K2
ELETTRONICA SANTERNO SINUS M 0025 4T BA2K2
ELETTRONICA SANTERNO SINUS M 0030 4T BA2K2
