AVENTICS換向閥R431004994技術參數
Specifications | |
Activation | Manual |
Nominal flow Qn | 1308.72 l/min |
Compressed air connection output | ? 1/4″ |
Working pressure min. | 0 bar |
Working pressure max | 13.7 bar |
Sealing principle | Soft Seal |
Type | Poppet valve |
Type | with detent |
Version | 2-HA-1 |
Control pressure min. | 0 bar |
Control pressure max. | 17.3 bar |
Min. ambient temperature | -40 °C |
Max. ambient temperature | 71 °C |
Min. medium temperature | -40 °C |
Max. medium temperature | 71 °C |
Medium | Compressed air |
Oil content of compressed air min. | 0 mg/m3 |
Oil content of compressed air max. | 1 mg/m3 |
Max. particle size | 50 μm |
Compressed air connection input | ? 1/4″ |
Weight | 0.68 kg |
Housing material | Die-cast aluminum |
AVENTICS換向閥R431004994介紹
AVENTICS? 3/2 方向閥，A-Pilotair? 系列 R431004994
Qn = 1308.72 l/min
機械或手動操作

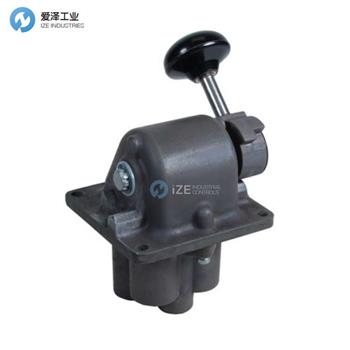

AVENTICS? 3/2-directional valve, Series A-Pilotair? R431004994
Qn = 1308.72 l/min
Mechanically or manually operated
AVENTICS閥門A-Pilotair系列其他常用型號：
AVENTICS R431004994
AVENTICS R431004996
AVENTICS R431006456
AVENTICS R431004997
AVENTICS R431004999
AVENTICS R431004998
AVENTICS VALVE NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于AVENTICS換向閥R431004994的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for AVENTICS products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
AVENTICS換向閥R431004994技術參數介紹
