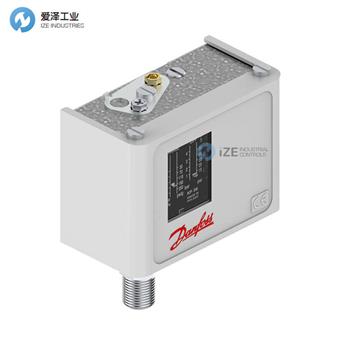

DANFOSS壓力開關KP35 060113391技術參數
Product details | |
Gross weight | 0.33 Kg |
Net weight | 0.295 Kg |
Amb. Temp. Note | 80 °C/176 °F for max 120 min |
Ambient temperature range [°C] [max] | 65 °C |
Ambient temperature range [°C] [min] | -40 °C |
Ambient temperature range [°F] [max] | 149 °F |
Ambient temperature range [°F] [min] | -40 °F |
Approval | CCC |
Contact function | SPDT |
Contact rating | AC15=10 A, 400 V |
Differential [bar] [max] | 4 bar |
Differential [bar] [min] | 0.7 bar |
Differential [psi] [max] | 58 psi |
Differential [psi] [min] | 10 psi |
Electrical connection | Rubber cable gland |
Electrical connection size | 6-14 mm |
EN 60947 electrical properties | Pollution degree: 3 |
EN 60947 wiring properties | Flex, ferrules: 0.5-1.5 mm2 |
Enclosure rating IP | IP30 |
Enclosure rating Nema (~) | 1 |
In scope of WEEE and contain batteries | No |
Max. test pressure [bar] Pe | 22 bar |
Max. test pressure [psig] | 319 psig |
Max. Working Pressure [bar] | 17 bar |
Volume | 0.57 Liter |
Max. Working Pressure [psig] | 245 psig |
Pressure connection size | 1/4 |
Pressure connection standard | ISO 228-1 |
Pressure connection type | G |
Pressure Male/Female | Male |
Pressure sensing element | Bellows |
Product accessories | Switches accessories |
Product description | Pressure Switch |
Product group | Switches and thermostats |
Product Name Description | Pressure switch |
REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
Regulation range | 6 inHg - 108 psig |
Regulation range [bar] Pe [max] | 7.5 bar |
Regulation range [bar] Pe [min] | -0.2 bar |
Reset function | Auto |
Type | KP35 |
DANFOSS壓力開關KP系列介紹
KP 和 KPI 壓力開關和恒溫器用于多種行業的控制、監控和報警系統
應用程序。
KP壓力開關主要用于氣態流體，而KPI壓力開關更多用于液態和氣態流體。
KP 壓力范圍包括專門設計的壓力開關和限制器，用于蒸汽鍋爐和其他加熱應用。
對于水泵控制和保護（干運行），雙壓力開關 KP44 適合并確保延長水泵的使用壽命。
The KP and KPI pressure switches and thermostats are used for control, monitoring and alarm systems in a wide variety of industry
applications.
KP pressure switches are mainly used for gaseous fluid whereas KPI pressure switches are more for liquid and gaseous fluid.
The KP pressure range include special designed pressure switches and limiters for steam boilers and other heating applications.
For water pump control and protection (dry run) the dual pressure switch KP44 is suitable and secure improved life time of the water pump.
DANFOSS壓力開關KP系列其他常用型號：
DANFOSS KP35 060-113366
DANFOSS KP35 060-113391
DANFOSS KP35 060-504766
DANFOSS KP35 060-538666
DANFOSS KP35 060-450366
DANFOSS KP36 060-110866
DANFOSS KP36 060-110891
DANFOSS KP36 060-113766
DANFOSS KP36 060-538766
DANFOSS KP36 060-122166
DANFOSS KP36 060-114466
DANFOSS KP36 060-450166
