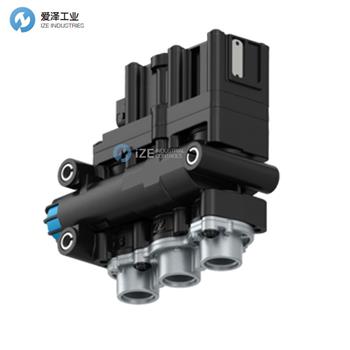

WABCO閥4728900410技術規格
Technical Specifications | |
Brand | Wabco Original |
Part type | Premium original quality |
Product category | Device |
Calculated Volume (dm?3) | 1.9159 |
Cooling | Air |
Electrical connection | TYCO HDSCS 4 x 2.8 CODING B |
Max. operating pressure | 319.1 psi |
Mounting | 3 x ? 8 mm |
Multi Nominal diameter (From Port 1 to x) | 0.44 / 0.31 / 0.02 in |
Port thread 11 | M22 x 1.5 JED - 388-4 |
Port thread 22 | M22 x 1.5 JED - 388-4 |
Port thread 23 | M22 x 1.5 JED - 388-4 |
Port thread 3 | Integrated silencer |
Protection class | IP 6K6K / IP 6K9K |
Rated current | 320 mA |
Technical specification | OE specification |
Temperature range | -40°C to +80°C |
Voltage | 24 V |
Size (mm x mm x mm) | 161 x 70 x 170 |
Weight (kg) | 1.43 |
Weight (lb) | 3.1526 |
WABCO閥其他常用型號：
WABCO 4728900410
WABCO 4728900010
WABCO 4728900020
WABCO 4728900030
WABCO 4728900200
WABCO 4728900210
WABCO 4728900220
WABCO 4728900300
WABCO 4728900310
WABCO 4728900320
WABCO 4728900400
WABCO VALVE NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于WABCO閥4728900410的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for WABCO products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.
