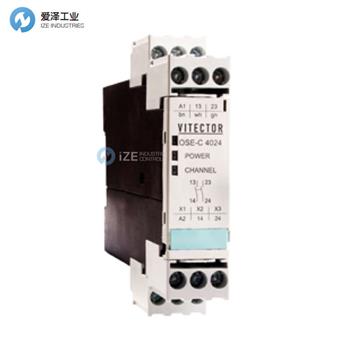

VITECTOR控制單元OSE-C 4024技術參數
General Technical Data | |
Housing Type | DIN Rail Mounting |
Input Type of Sensing Edge | 3-Wire |
Outputs | Relay NCC |
Additional Outputs | Signalling Output |
Supply Voltage | 24 V DC |
Operation Temperature | +5 °C to +55 °C (41 °F to 131 °F) |
Weight | 0.2 kg |
Housing Material | Polyethylene |
Protection Class | Housing IP40, Terminal Block IP20 |
Housing Dimensions | 22.5x100x120 mm (0.89x3.94x4.72") |
Power Consumption | 4 VA |
Cyclic Duration Factor | 1 |
Number of Optical Sensing Edge Inputs | 1 |
Safety Properties | |
Safety Properties | Safety Cat. 4 PL e (EN 13849-1) |
MTTFd | 100 years |
Diagnostic Coverage DC | 0.99 |
Sensing Edge Output | |
Output Type | NCC Relay |
Contact Material | Hard Silver, AgNi |
Max. Switching Voltage | 250 V AC/DC |
Max. Switching Current | 4 A |
Max. Switching Capacity | 1000 VA |
Fusing | 4 A slow acting |
Signalling Output | |
Output Type | Semiconductor Output (PNP open collector) |
Current / Voltage | U max. = 36 V, I max. = 50 mA |
Unit of Measure | Piece |
Product Life Cycle | Established |

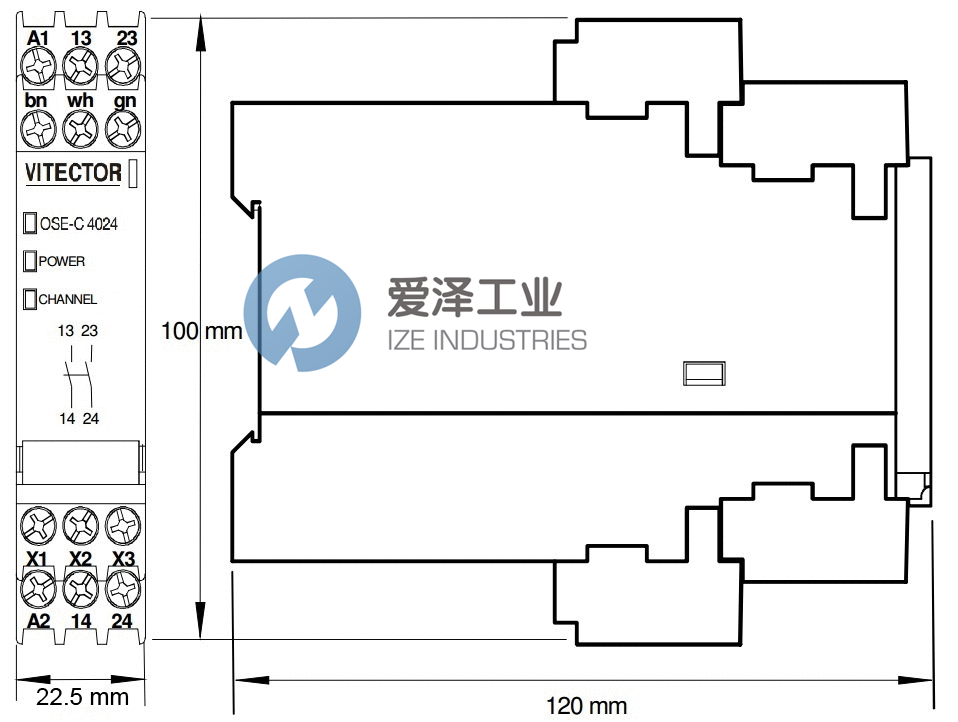

VITECTOR控制單元OSE-C 4024技術尺寸
VITECTOR控制單元OSE-C系列其他常用型號：
VITECTOR OSE-C 2324
VITECTOR OSE-C 2300
VITECTOR OSE-C 2301
VITECTOR OSE-C 2323
VITECTOR OSE-C 1001
VITECTOR OSE-C 1004
VITECTOR OSE-C 1003
VITECTOR OSE-C 4024
VITECTOR CONTROL UNIT NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于VITECTOR控制單元OSE-C 4024的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for VITECTOR products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
VITECTOR控制單元OSE-C 4024技術參數及尺寸
