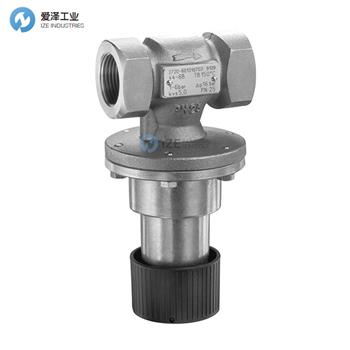

SAMSON壓力閥44-6B技術參數
Regulator | Excess Pressure Valve |
Type | 44-6 B |
Connection | G ?, G ?, G 1 female thread · Flanged connection1) |
Nominal pressure | PN 25 |
Max. perm. temperature | |
Liquids | 150 °C |
Non-flammable gases | 80 °C |
Steam | 200 °C |
Max. perm. differential pressure ΔP | * 2) |
Set point ranges, continuously adjustable | 0.2 to 2 bar · 1 to 4 bar · 2 to 6 bar · 4 to 10 bar · 8 to 20 bar |
Leakage rate | ≤ 0.05 % of KVS |
Max. perm. ambient temperature | 60 °C |
The maximum permissible differential pressure is consistent with the max. set point; max. perm. differential pressure of 16 bar except for 8 to 20 bar set point range | |
SAMSON壓力閥常用型號：
SAMSON 44-6B
SAMSON 44-1 B
SAMSON 44-0 B
SAMSON Pressure valve NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于SAMSON壓力閥44-6B的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for SAMSON products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
SAMSON壓力閥44-6B技術參數及介紹
