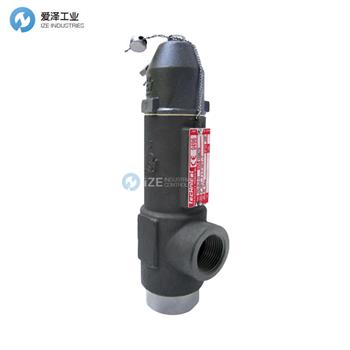

TECHNICAL安全閥20000系列技術參數
TECHNICAL SPECIFICATIONS | |
Nominal Diameter | DN 15 – DN 25 / 1/2″ – 1″ (inlet) |
Orifice | c – d – e |
Actual Orifice Diameter | 8 mm – 12 mm / 5/16″ – 121/256″ |
Actual Orifice Area Ao. | 0.502 cm2 – 1.131 cm2 / 0.078 in2 – 0.175 in2 |
Pressure | 0,3 bar – 1500 bar / 4.35 psig – 21,755 psig |
Temperature: | -196 °C a +350 °C / -320.8 °F a +662 °F |
Body Material | SA 216 WCB, SA 351 CF8M, SA 351 CF3M, |
Valve Connection | Flange in accordance with ASME B 16.5 or DIN EN 1092 |
Type | Conventional to Spring, conventional to spring with blowdown screw adjustable |
TECHNICAL安全閥20000系列介紹
可提供螺紋連接、GAS 和 NPT 以及符合 ASME B 16.5 或 EN 標準的法蘭，可提供以下尺寸： ?“、3/4”和 1“x 1”，設定壓力高達 1500 bar。共有三個孔口可滿足不同的壓力和容量需求。
閥體可以采用碳鋼或不銹鋼制成，而閥門的閥內件始終采用 不銹鋼制成。對于腐蝕性流體和/或應用，閥門可以采用特種鋼制造：雙相鋼、超級雙相鋼、蒙乃爾合金鋼等。應用領域很多：低溫工業、工業氣體、蓄能器保護、壓縮機和高壓泵。也是石油和天然氣行業中用于防止熱膨脹的經典閥門?？捎酶郊缦拢烘i緊螺釘、提升桿、軟座、平衡活塞、用于氣態流體的可調節排污?？捎玫恼J(rèn)證有：PED、EAC、ASME UV-Stamp（僅適用于氣體）。
Available with threaded connections, GAS and NPT and flanged in accordance with ASME B 16.5 or EN standard is available with the following sizes: ? “, ?” and 1 “x 1” and set pressure up to 1500 bar. There are three orifices available to cover the different needs of pressure and capacity.
The body can be supplied in carbon steel or stainless steel, while the trim of the valve is always made in stainless steel. In case of aggressive fluids and / or application, the valves can be manufactured in special steel: duplex, super duplex, monel etc. The fields of applications are many: cryogenic industry, industrial gases, protection of accumulators, compressors and high-pressure pumps. Are also the classic valves used for protection from thermal expansion, in the Oil & Gas industry. The accessories available are the following: locking screw, lifting lever, soft seat, balancing piston, adjustable blowdown for use with fluids in a gaseous state. The available certifications are: PED, EAC , ASME UV-Stamp (only for gas).
TECHNICAL安全閥20000系列其他常用型號：
TECHNICAL 240-73M-6K
TECHNICAL 240-OC2-14
TECHNICAL 240-050-6L
TECHNICAL 240-050-12
