SPRIANO差壓變送器SG76-XC01A211A0是SG74-XCB021024的停產替代型號
SPRIANO差壓變送器SG76-XC01A211A0技術參數
SG76 PNEUMATIC DP TRANSMITTER PZ |
XC - Body Material: SS A351 CF3M |
01 - Diaphragm: AISI 316 L, Core: AISI 316 L, Filling: Silicone oil Diameter: 3’’ Span Limits: 5 ÷ 52 KPa |
A - Gaskets: PTFE |
2 - Bolts and Nuts: AISI 316 Class A4-70 ISO 3506 NACE MR0175 |
1 - Process connection / Supply: 1/2" NPT F |
1 - Output signal: 0.2 ÷ 1 Kg/cm2 |
A - Options: Without options |
0 - Options: Without options |
Max static pressure: 100 bar |

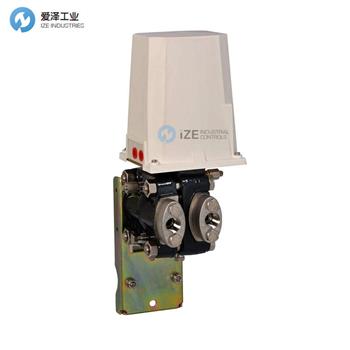

SPRIANO差壓變送器SG76系列介紹
SG76采用力平衡原理工作，由兩個主要單元組成： 檢測壓差變化的測量單元，由兩個鍛造體和一個測量盒組成。 傳輸單元將施加到測量元件上的差力轉換成比例輸出氣動信號。 由擋板噴嘴繼電器產生的輸出壓力以不斷上升的壓力供給反饋波紋管，直到波紋管力和測量元件之間達到平衡。 整個傳輸單元包含在防水外殼內。
The SG76 works on the force balance principle and consists of two main units: The measuring unit which detects the differential pressure variation and consists of two forged bodies and a measuring capsule. The transmission unit converts the differential force applied to the measuring element into a proportional output pneumatic signal. The output pressure, generated by a flapper nozzle relay, feeds the feedback bellows with a rising pressure until the balance between bellows force and measuring element is reached. The whole transmission unit is contained within a water-resistant housing.

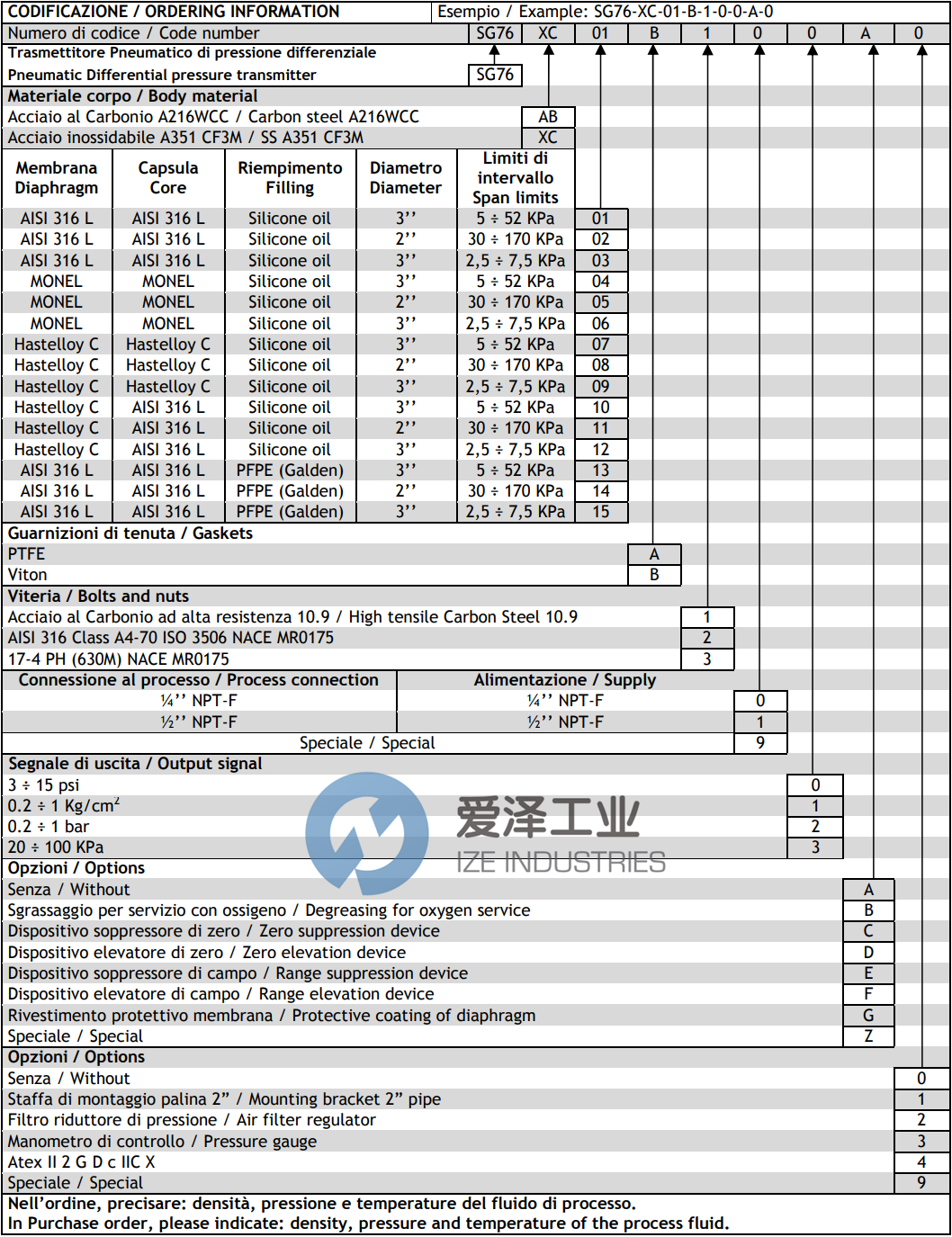

SPRIANO差壓變送器SG76系列選型
SPRIANO差壓變送器SG76系列其他常用型號：
SPRIANO SG76-XC01A211A0
SPRIANO SG76-XC01B100A0
SPRIANO SG74-XCB021024
