AIRCOM調壓閥PCEX-06技術參數
Media: | lubricated or unlubricated and 50 μm filtered compressed air or non-corrosive gases |
Supply voltage: | not necessary due to two-wire system (supply through 4...20 mA command signal) |
Electrical connector: | coupling socket, 4-pin according to DIN 43651, size 15 x 15 mm connector turnable in 90° steps |
ATEX classification: | Compliance with directive 2014/34/EU for use in potentially explosive atmosphere of group IIC, temperature classification T4. |
Ignition protection type: | II1G Ex ia IIC T4; II1D Ex D20 T135°C |
Power consumption: | < 200 mW Failsafe feature exhaust at power breakdown |
Linearity/Hysteresis: | < 1% FS Repeatability < 0.5% FS |
Mounting position: | any |
Protection class: | IP 65 |
Air consumption: | The pilot valve has an air consumption of 1.6 l/min |
Temperature range: | Media = 0 °C to 60 °C / 32 °F to 140 °F |
Body: | aluminium and plastic |
Elastomer: | NBR/Buna-N and FKM |
Inner valve: | stainless steel and plastic |
article: | PCEX-06 |
product group: | E |
weight: | 0.6 kg |

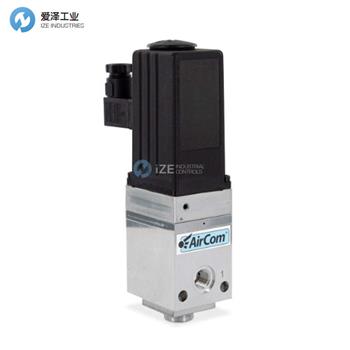

AIRCOM調壓閥PCEX-06產品介紹
兩線制閉環壓電式比例壓力調節器。 出口壓力與電輸入信號成正比。 該閥門可以安裝在任何位置，并且不受沖擊或振動的影響。 它是先導控制的以達到更高的流量。
Piezo-operated proportional pressure regulator with closed loop in a two-wire system. Outlet pressure is proportional to an electrical input signal. The valve can be mounted in any position and is immune to shock or vibration. It is pilot-controlled to reach a higher flow rate.
AIRCOM調壓閥PCEX系列其他常用型號：
AIRCOM PCEX-02
AIRCOM PCEX-03
AIRCOM PCEX-04
AIRCOM PCEX-05
AIRCOM PCEX-06
AIRCOM PRESSURE REGULATOR NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于AIRCOM調壓閥PCEX-06的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for AIRCOM products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
AIRCOM調壓閥PCEX-06技術參數及介紹
