DUPLOMATIC溢流閥RPC2-TN/RC/R31技術參數

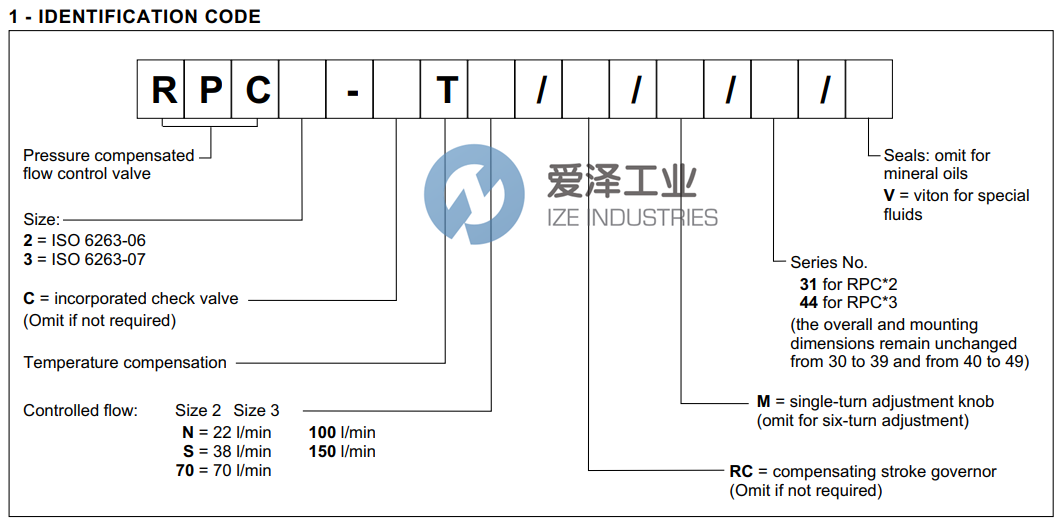

Code: | RPC2-TN/RC/R31 |
Series: | RPC - Pressure compensated flow control valve |
Size: | 2 - ISO 6263-06 |
Temperature compensation: | T |
Controlled flow: | N - 22 l/min |
RC - compensating stroke governor (Omit if not required) | |
Series No. | 31 for RPC*2 |
DUPLOMATIC溢流閥RPC系列介紹
RPC2 和 RPC3 是用于底板安裝的壓力和溫度補償流量控制閥。所需的流量值通過可鎖定在任何位置的旋鈕來設置。RPC1-*CT 是帶有止回閥的版本，可實現自由逆流。旋鈕可進行六圈或一圈調節。提供帶有補償器行程限制器的版本。

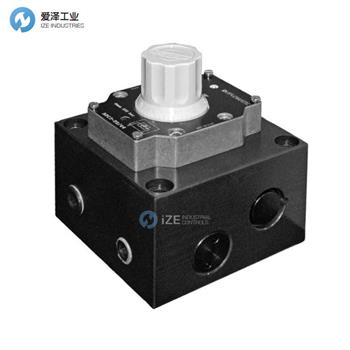

RPC2 and RPC3 are pressure- and temperature-compensated flow control valves for subplate mounting. The desired flowrate value is set by means of a knob that can be can be locked in any position. The RPC1-*CT is the version with check valve, for free reverse flow. Knob can be with six turns or one turn adjustment. A version with a compensator travel limiter is available.
DUPLOMATIC溢流閥RPC系列選型
DUPLOMATIC溢流閥RPC系列其他常用型號：
DUPLOMATIC RPC2-CTS/M/31
DUPLOMATIC RPC2-CTS/RC/31
DUPLOMATIC RPC2-CTS-30
DUPLOMATIC RPC2-CTS/31
DUPLOMATIC RPC2-CTN/31
DUPLOMATIC RPC2-T70/M/31
DUPLOMATIC RPC2-TN/RC/R31
DUPLOMATIC VALVE NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于DUPLOMATIC溢流閥RPC2-TN/RC/R31的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for DUPLOMATIC products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
DUPLOMATIC溢流閥RPC系列RPC2-TN/RC/R31技術參數及選型
