BARCONTROL壓力開關HDC系列技術參數
Technical data | |
Construction: | snap action micro switch AF27 |
Operating fluid: | selflubrication fluids (e.g. hydraulic oil), neutral fluids/gases |
Mechanical installation: | over fluid connection |
Mounting position: | any |
Max. system pressure: | 350bar |
Repeatability: | max. ±2% of full scale at room temperature |
Hysteresis: | guide value: 5bar + 5…15% of set point, adjustable |
Life cycles, mech.: | > 2x106 |
Max. switching frequenzy: | ~1Hz |
Temperature range: | -40…+100°C as a function of used elastomere |
Vibration resistance: | 10g (10 ... 2000Hz) sinus acc. to ISO 16750-3 |
Shock resistance: | 30g, 14ms shaped sinus acc. to DIN 40046, T7 |
Swichting element: | snap action micro swith with self cleaning pins |
CE-mark: | acc. to EU-standards: 2014/35/EU (LVD); 2014/68/EU (PED), 2011/65/EU (RoHS) |
Protection class: | IP65 acc. to DIN EN 60529; IP67 using plug M12 or cable outlet |
Weight: | ~0,15kg |

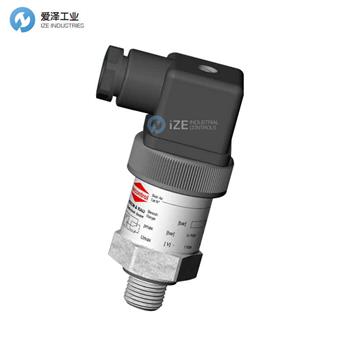

BARCONTROL壓力開關HDC系列介紹
快動微動開關
250V/4A
轉換觸點 SPDT
帶 PTFE 密封的活塞
可根據要求調高 10…320bar
系統壓力上限可根據要求提高 350 bar
可預設出廠值
可調節遲滯
緊湊的設計
電氣連接 DIN EN 175301-803A，包括插座、替代插頭 M12x1 或電纜出口
Snap action micro switch
250V / 4A
Change over contact SPDT
Piston with PTFE-sealing
Adjustment range 10…320bar higher on request
Max. system pressure 350 bar higher on request
Preset ex works possible
Adjustable hysteresis
Compact design
E-connection DIN EN 175301-803A including socket, alternativ plug M12x1 or cable outlet

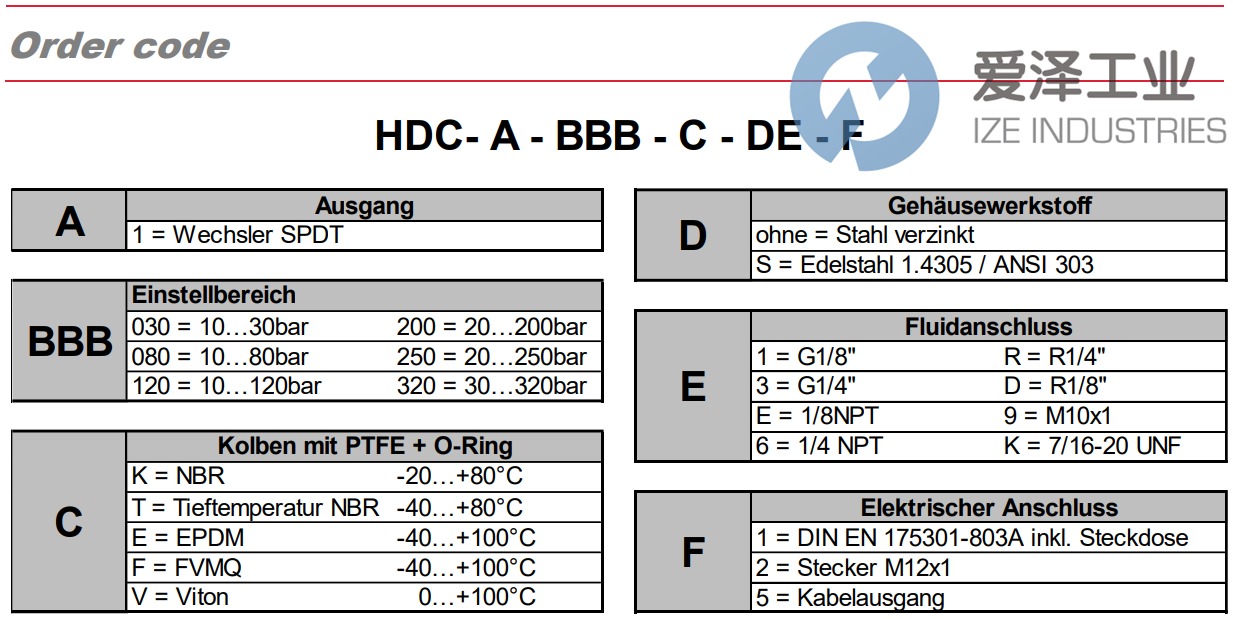

BARCONTROL壓力開關HDC系列選型
BARCONTROL壓力開關HDC系列其他常用型號：
BARCONTROL HDC-1-250-K-3-1
BARCONTROL HDC-1-030-K-S-3
BARCONTROL HDC-1-080-K-3-1
BARCONTROL HDC-1-200-K-3-1
