NSF電磁閥50L系列技術參數
Specifications | |
Vibration | 10g 2000 Hz |
Shock | 50g 8.5 ms |
Temperature shock | -55°C…+85°C |
Temperature range | -55°C…+80C |
Maximum coil temperature | +120°C |
Humidity | 95% @ 50°C, 48 hours |
Minimum life | 10 million steps |
Proof voltage: | AWG 19-23 1000 Vrms |
Weight Uni-directional | 400g |
Bi-directional | 680g |
Mechanism torque | T=12 100mNm |
Angular Tolerance | ±1° |
non accumulative |

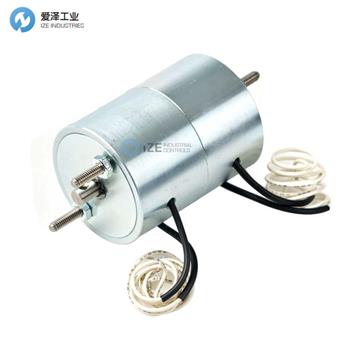

NSF電磁閥50L系列介紹
步進電磁閥有 12、18、24 和 36 位設計，具有單向和雙向選項。
高扭矩尺寸比，其性能的關鍵是獨特的齒式離合器驅動裝置。 它具有積極作用的自鎖驅動裝置，有助于提供更大的可用扭矩輸出。
對于摩擦負載，離合器在驅動慣性負載時提供可靠的抓地力（無滑動）。該驅動器還充當內置機電離合器制動器，以消除步驟結束時過度驅動的自然趨勢。
通過采用彈簧加載的球制動器，扭矩進一步增加，精確度為 ±1°，非累積。 這種精度提供了內部?jī)A斜滾珠座圈的對準，確保高啟動扭矩。
Stepping Solenoids are available in 12, 18, 24 and 36 position designs, with uni-directional and bi-directional options.
Known for their high torque-to-size ratio, the key to their superior performance is the exclusive tooth clutch drive. It has a positive action, self-locking drive that contributes to a greater usable torque output.
For friction loads the clutch provides a positive grip (no slip) when driving intertia loads. The drive also acts as a built-in electro-mechanical clutch brake to eliminate the natural tendency of overdriving at the end of step.
Torque is further increased by the incorporation of a spring loaded ball detent, accurate to ±1°, nonaccumulative. This accuracy provides near perfect alignment of the internal inclined ball race assuring consistently high starting torque.

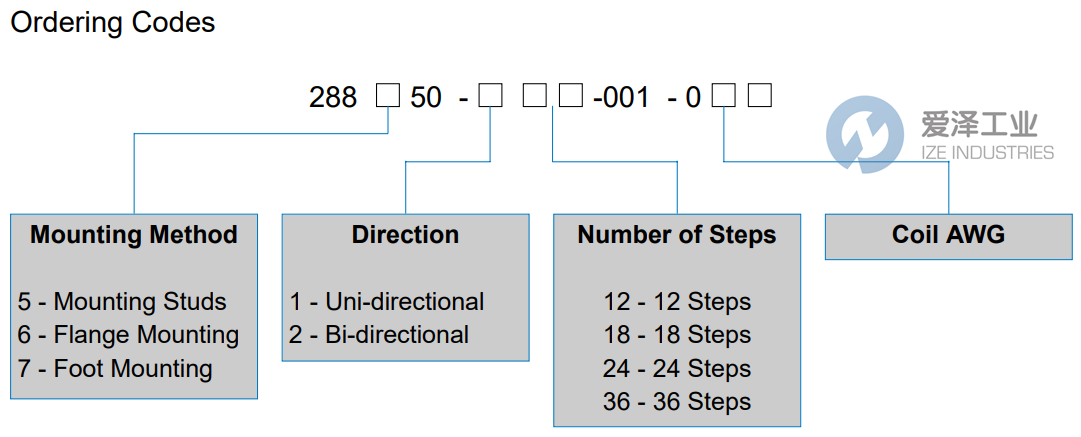

NSF電磁閥50L系列選型
NSF電磁閥50L系列其他常用型號：
NSF 288650-224-001-024
NSF 288550-118-001-024
NSF 288550-218-001-021
NSF 288550-236-003-026
NSF Stepping Solenoid NEW + ORIGINAL+ ONE YEAR WARRANTY
