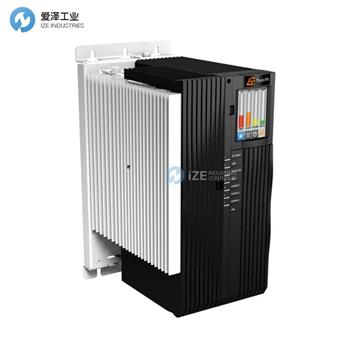

ADVANCED控制器THYRO-PX 1PX 500-110H技術參數
Thyro-PX=Modular Digital Thyristor SCR Power Controller with current range to 2900 A, ±0.5% Voltage or Current Accuracy |
1PX=Single phase power controller for single phase operation |
500=Type Voltage 500 V unit: 230 V -20% to +10% [184 V to 550 V] |
110=TC = 110 A 55 |
H=Integrated semiconductor fuse [REQUIRED] |
ADVANCED控制器THYRO-PX系列產品介紹
Thyro-PX Series
Advanced SCR Power Controller Supports Load Currents Up to 5000 A
Built for demanding thermal applications, our high-performance Thyro-PX SCR power controller supports multiple operating voltages and control modes.
Large 2.8 in (71.1 mm) LED graphic display with integrated process data recorder and SD card
Digital and analog I/O options, with integrated memory for error tracking and energy consumption
Mains-load optimization features dynamic digital control and power monitoring
Thyro-PX系列
先進的SCR功率控制器支持高達 5000 A 的負載電流
高性能 Thyro-PX SCR 功率控制器專為要求苛刻的應用而設計，支持多種工作電壓和控制模式。
大型2.8英寸（71.1 毫米）LED 圖形顯示屏，帶集成過程數據記錄器和SD卡
數字和模擬 I/O 選項，帶有用于錯誤跟蹤和能耗的集成存儲器
電源負載優化具有動態數字控制和功率監控功能
Overview
50 years of experience are infused in the Thyro-PX?? series’ design and functionality. The SCR power controller is available in single-, dual-, and three-phase units, supports voltages from 690 V and 5000 A, and offers superior interface options. Integrate operating modes and parameters seamlessly with the 2.8-inch, LED Thyro-Touch display. And enable efficient system parameters, loading, and storage via an on-board SD-card. Thyro-PX power controller is ideally suited for your transformer and resistive loads for glass, metal, and ceramic manufacturing. It is optimal for heating elements in electric furnaces.
Benefits
Minimize peak kVA demand via MoSi and TAKT load management
Precisely regulate power, including load management, for optimal control and energy consumption
Customize faults, alarms, status, limits, and set points to easily integrate with existing control systems
Intuitively set up and commission using an integrated touch-screen display
Features
32-bit micro, 1.5 M measurements per sec, and 15-bit resolution, better than 0.5% accuracy
Integrated mains-load optimization (dASM) with digital control
Integrated soft starting for operation with downstream transformer
Integrated Thyro-Touch display
Seamless integration to Rockwell Automation? Studio5000? automation software via available add-on profiles (AOPs); simplify setup and commissioning using predefined tags
概述
Thyro-PX? 系列的設計和功能融入了50年的經驗。 SCR功率控制器提供單相、雙相和三相裝置，支持 690 V 和 5000 A 的電壓，并提供卓越的接口選項。 將操作模式和參數與 2.8 英寸 LED Thyro-Touch 顯示屏無縫集成。 并通過SD卡實現高效的系統參數、加載和存儲。Thyro-PX功率控制器非常適合用于玻璃、金屬和陶瓷制造的變壓器和電阻負載。 它最適合電爐中的加熱元件。
優勢
通過MoSi和TAKT負載管理最大限度地減少峰值kVA需求
精確調節功率（包括負載管理），以實現最佳控制和能耗
自定義故障、警報、狀態、限制和設定點，以輕松與現有控制系統集成
使用集成觸摸屏顯示器直觀地設置和調試
特征
32 位微型，每秒 1.5 M 次測量，15 位分辨率，精度優于 0.5%
帶數字控制的集成電源負載優化 (dASM)
集成軟啟動，可與下游變壓器一起運行
集成 Thyro-Touch 顯示屏
通過可用的附加配置文件 (AOP) 與 Rockwell Automation? Studio5000? 自動化軟件無縫集成； 使用預定義標簽簡化設置和調試
ADVANCED控制器其他常用型號：
ADVANCED Thyro-PX 1PX 500-37 H
ADVANCED Thyro-PX 1PX 500-495 HF
ADVANCED Thyro-PX 1PX 500-130 H
ADVANCED Thyro-PX 1PX 500-2900 HF
ADVANCED Thyro-PX 1PX 500-280 HF
ADVANCED Thyro-PX 1PX 500-110 H
ADVANCED Thyro-PX 1PX 690-1400 HF
ADVANCED Thyro-PX 1PX 500-170 H
ADVANCED Thyro-PX 1PX 500-1000 HF
ADVANCED Thyro-PX 1PX 500-650 HF
ADVANCED Thyro-PX 1PX 690-300 HF
ADVANCED Thyro-PX 1PX 500-75 H
ADVANCED Thyro-PX 1PX 690-780 HF
ADVANCED Thyro-PX 1PX 500-350 HF
ADVANCED Thyro-PX 1PX 690-200 HF
ADVANCED Thyro-PX 1PX 500-16 H
ADVANCED Thyro-PX 1PX 690-2600 HF
ADVANCED Thyro-PX 1PX 690-2000 HF
ADVANCED Thyro-PX 1PX 500-780 HF
ADVANCED Thyro-PX 1PX 500-1500 HF
ADVANCED Thyro-PX 1PX 500-2100 HF
ADVANCED Thyro-PX 1PX 690-500 HF
