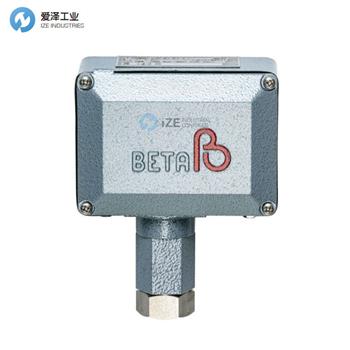

BETA真空開關C3-V304L-S1N-B1-K1技術參數
C3-V304L-S1N-B1-K1 | |
Housing: | aluminium, IP66, electrical connection 3/4" NPT-F |
Setting range: | -60 / 150 mbar |
Max. operating pressure: | -0.5 bar / +30 bar |
Connection: | NPT 1/4" female, 316 SS |
Diaphragm/O-ring: | Buna-N/Buna-N |
Microswitch: | VAC 480/15 VDC 28/0.5 |
Standard for alternating current |
BETA真空開關C系列介紹
安全性:
— 通過夾緊端子進行安全可靠的電氣連接
— 標準接地端子
— IP 66 外殼 (NEMA 4X)
— 帶墊圈和外加螺釘?shù)膶?shí)心蓋
可靠性:
— 最高超量程保護
— 彈簧加載活塞,出色的抗沖擊和振動能力
— 靈活的不銹鋼安裝支架,避免儀器上的管道應變導致設定點偏移
Safety:
— Safe, secure electrical hookup by clamp terminals
— Standard earth terminal
— IP 66 enclosure (NEMA 4X)
— Solid cover with gasket and captive screws
Reliability:
— Highest overrange protection
— Spring loaded piston, excellent resistance against shock and vibration
— Flexible stainless steel mounting bracket to avoid pipe strains on the instrument to cause shift of setpoint

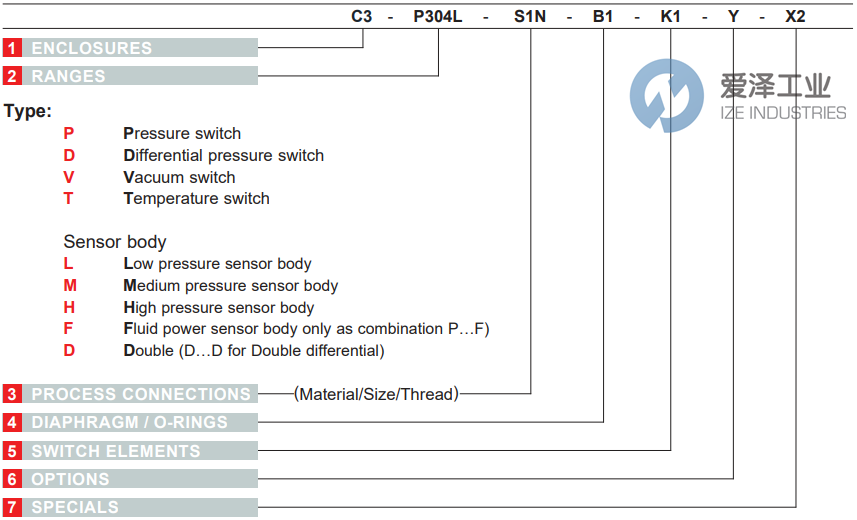

BETA真空開關C系列選型
BETA真空開關C系列其他常用型號:
BETA C3-V304L-S1N-B1-K1
BETA C3-P304L-S1N-B1-K1-Y-X2
BETA C3-V304L-S2B-B1-K1-V
BETA C3-V304L-S1X-S1-K1-J-X1
BETA C3-V304L-S1N-S2-K1-X1
BETA C3-V304L-S2N-E6-K1-C-X1
BETA C3-V304L-SIN-S2-K1-X1
BETA Vacuum switch NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年,定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣,液壓以及氣動解決方案的合作伙伴,我們利用我們的全球協作團隊,為客戶提供先進解決方案,市場知識以及相關增值服務來幫助優化客戶的工作效率,提高可靠性和安全性,致力于成為工業產品和解決方案的優質渠道。
如果有任何關于BETA真空開關C3-V304L-S1N-B1-K1的疑問,請隨時與我們溝通(021-31006702)。我們將盡全力解決您的問題。
If you have any question for BETA products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
BETA真空開關C系列C3-V304L-S1N-B1-K1技術參數及選型
