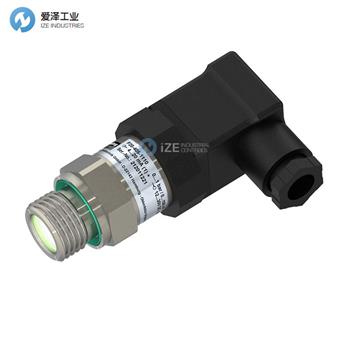

NODING變送器P20-H00-1111技術參數
P20 |
H:4…20 mA 2-wire, -25…120 °C |
00:0...100 mbar -0,3/4 |
1:G1/2A DIN 3852 1.4404 |
1:FPM (Viton), Standard |
1:Connector EN 175301-803A IP 67 |
1:Potted electronic |
NODING變送器P20系列介紹
Front flush process connection
High overload capability
Dry ceramic sensor
Accuracy ≤ 0,2 %
Smallest measuring range: 0…50 mbar
Largest measuring range: 0…40 bar
Negative pressure measuring range: up to -1 bar
Analog output: 4…20 mA, 2-wires,…10 V, 3-wires
Optional for media up to 125 °C
Description
The ?P20 ?pressure ?transmitter model is designed for use in applications where media tend to deposit and clog the sensor. ?A??compact ?front-flush process connection prevents hidden edges and drill holes, ?in combination with a resistant ceramic sensor,??optimal cleaning and maintenance can be ensured.??The ?capacitive? measuring? principle? enables? a ?very? accurate and long-term stable measurement, even at lowest pressures and high overload resistance. The process connection is made of high-quality ?stainless ?steel? 1.4404 ?and? is? therefore? suitable? for ?almost? all? media.
Applications:
Viscous and pasty media
Hygiene applications
Liquid media
Gaseous media
Aggressive Media
前齊平連接
高過載能力
干式陶瓷傳感器
精度 ≤ 0,2 %
最小測量范圍：0…50 mbar
最大測量范圍：0…40 bar
負壓測量范圍：最高-1 bar
模擬輸出：4…20 mA，2 線，…10 V，3 線
可選介質最高 125 °C
描述
P20壓力變送器型號設計用于介質容易沉積并堵塞得傳感器應用。與正面齊平的過程連接可防止隱藏的邊緣和鉆孔，結合耐腐蝕的陶瓷傳感器，可以確保最佳的清潔和維護。電容式測量能夠?qū)崿F(xiàn)非常準確和長期穩定的測量，即使在最低壓力和高過載電阻下也是如此。 過程連接由優質不銹鋼1.4404制成因此適用于幾乎所有介質。
應用：
粘性和糊狀介質
衛生應用
液體培養基
氣體介質
NODING變送器P20系列其他常用型號：
NODING P20-H00-1111
NODING P20-H10-1111
