ANALOGMODULES電路板763規格介紹
PARAMETER | Min. | Typical | Max. |
INPUT | |||
Power | 4.75VDC | 5.0VDC | 5.25VDC |
Current | - | 0.330A | 3.5A |
Current Control (50 Q Impedance, 0.333ANV Scaling) | 0V | - | 4.V |
OUTPUT | |||
Current | 0.1A | - | 1.2A |
Bias Current (Trimpot adjustable) | 0mA | - | 90mA |
Compliance Voltage | - | 2.0V | 3.0V |
Pulsewidth | 10 ns | - | CW |
Repetition Rate | Saingie Shot | - | 50 MHz |
Duty Cycle | 0% | - | 100% |
Risetime (Optical) @ 1A | - | 6 ns | 10 ns |
Falltime (Optical) @ 1A | - | 6 ns | - |
TEC Current | 0 | 1.80 A | 3.0 A |
TEC Voltage | 0 | 3.14 V | 4.2V |

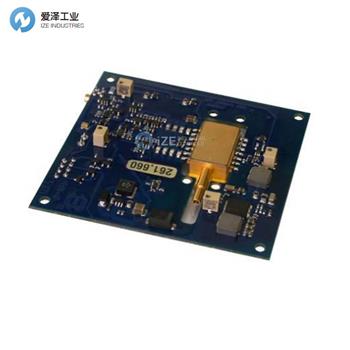

ANALOGMODULES電路板763產品介紹
The Model 763 OEM seed laser diode driver (pump laser diode driver) is ideal for driving 14-pin butterfly packaged laser diode modules or semiconductor optical amplifiers (SOA) for use in CW or pulsed fiber MOPA and EDFA systems. The driver is implemented as a transconductance amplifier (analog voltage in, scaled current out) with operation up to 1.2A, 3.0V and pulsewidths down to 10ns. The driver circuitry operates from a single +5V power source. All other required voltages are generated on the board by high efficiency switching power supplies. The 763 is manufactured to the RoHS Directive 2002/95/EC requirements.
763 型 OEM 種子激光二極管驅動器（泵浦激光二極管驅動器）非常適合驅動 14 針蝶形封裝激光二極管模塊或用于 CW 或脈沖光纖 MOPA 和 EDFA 系統的半導體光放大器 (SOA)。 該驅動器作為跨導放大器（模擬電壓輸入，比例電流輸出）實現，工作電流高達 1.2A，3.0V，脈寬低至 10ns。 驅動器電路由單個 +5V 電源供電。 所有其他所需的電壓均由高效開關電源在電路板上產生。 763 的制造符合 RoHS 指令 2002/95/EC 的要求。
ANALOGMODULES電路板其他常用型號：
ANALOGMODULES 762
ANALOGMODULES 763
ANALOGMODULES 766
ANALOGMODULES 767
ANALOGMODULES 7612A
ANALOGMODULES circuit board NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業集產品開發、設計、制造、銷售、于一體，代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于ANALOGMODULES電路板763的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for ANALOGMODULES products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.
ANALOGMODULES電路板763技術參數
